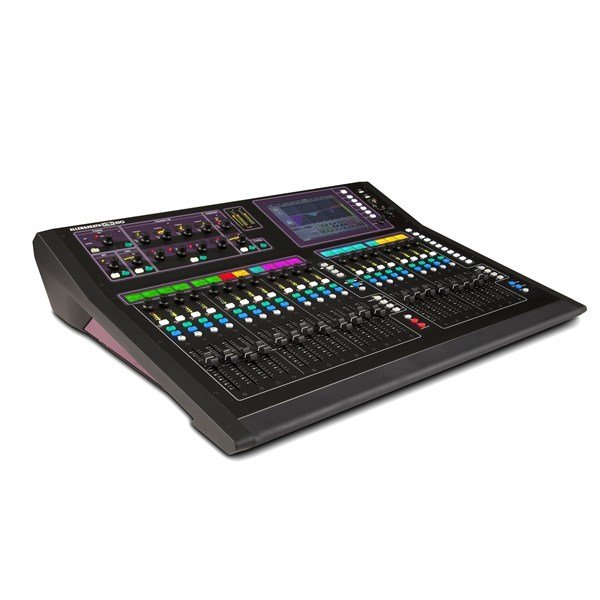

Allen Heath GLD-080 Compact digital mixer: 8 in 10 out, 20 faders
Allen & Heath GLD-080 Compact digital mixer: 8 in 10 out, 20 faders
Compact digital mixer with scalable, remote I/O
Systems from 4 to 44 mics

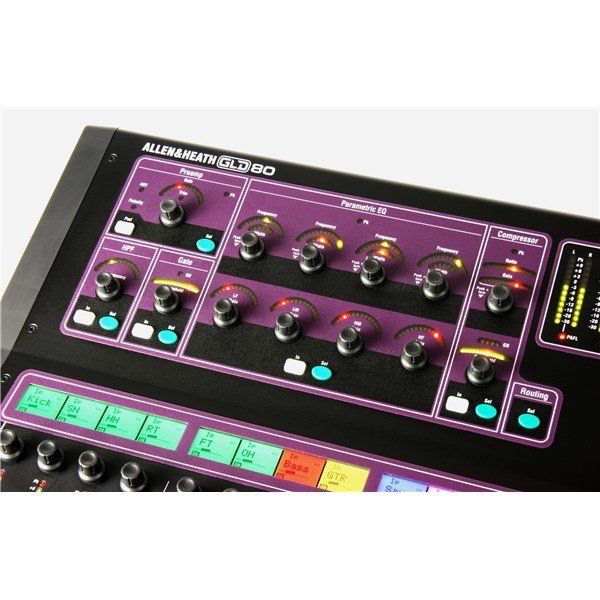

1Easy to use, quick to access, analogue style interface
dSNAKE Cat5 digital snake—up to 120m cable length
8.4 inch colour touchscreen for graphical view and setup
20 faders, 4 layers, 80 channel strips in a freely customizable layout
48 input channels into 30 assignable buses (Aux, Group, Matrix, Main, FX Send) into 20 mix outputs
8 stereo RackFX engines* with dedicated ‘short’ returns with 4-band PEQ
Full processing on all inputs including trim, polarity, HPF, insert, gate, 4-band PEQ, compressor and delay
Full processing on all outputs including insert, PEQ, GEQ, compressor and delay
LR, None (monitors), LR+M (sum), LR+M (bus), LCR main mix modes
16 DCAs / mute groups
Built-in Talkback, RTA and Signal Generator
I/O module options for FOH/Monitor split, multitrack recording, link to iLive and more
MIDI In/Out and Ethernet Network port
AviomTMPro16 compatible Monitor port on main AudioRack
High end 1dB step recallable mic/line preamps
User definable channel names and colours
Engineer’s mono Wedge and stereo IEM strips
Input, output and insert soft patchbays
Quick copy, paste and reset of mixes and parameters
Libraries, Scenes and Show memories with USB transfer
Get started quickly with Template Shows*
