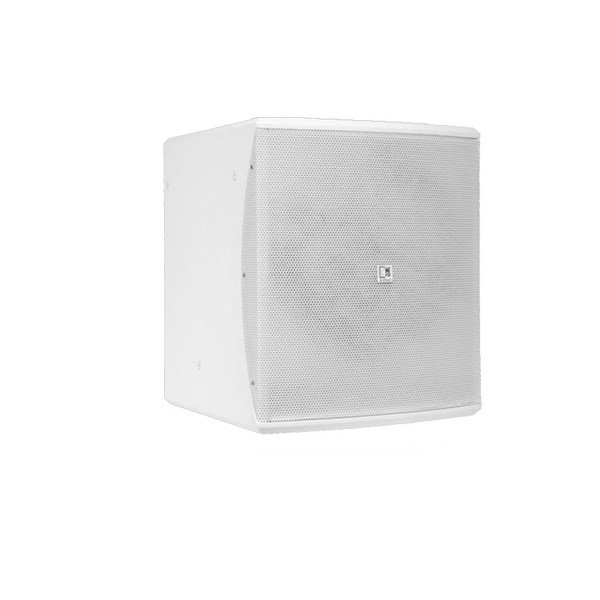

Audac BASO10/W (Beyaz) Compact 10'' 225W Rms Bass Reflex Kabin
Audac BASO10/W (Beyaz) Compact 10" 225W Rms Bass Reflex Kabin
The BASO cabinets are universally useable passive bass cabinets. Their bass reflex design is engineered to be as compact as possible while giving the maximum performance in terms of sound quality and pressure. Their enclosures are crafted out of sturdy high-quality plywood while their elegant design enables them to be placed in any environment.
The BASO10 is loaded with a 10” high-performance woofer with an RMS power rating of 225 Watt and maximum power of 450 Watt. The strength of this loudspeaker originates from a four layer wounded 1.5” voice coil in combination with an over-sized ferrite type magnet which provides an unusual high force factor. In combination with the low-loss suspension, this results in a linear behaviour with high efficiency and extremely wide frequency range.
These carefully selected high-grade materials in collaboration with accurate acoustical craftmanship results in a deep and true to nature reproduction of bass. The highly-efficient design results in a sensitivity of 96 dB with capability of continuous sound pressure production up to 120 dB. The frequency response ranges from 54 Hz up to 1.2 kHz while going down to 38 Hz at -10 dB.
Besides these acoustical aspects, a lot of attention has been paid to all other aspects making it as versatile as possible. The enclosure is compact designed without any sacrifice to robustness due to the 15 mm high-quality plywood material finished with structured coating.
Connections are made using two speakon compatible connectors located in a recessed connector dish, allowing link-through to other cabinets. This also allows close placement to any wall or corner.
Compact & flexible design
High performance 10” driver
450 Watt program power
120 dB of Max. SPL
54 Hz - 1.2 kHz freq response
Flat and wide frequency range
15 mm plywood construction
Recessed connector dish
Max. Power
450 Watt
Frequency Response (±3 dB)
54 Hz - 1.2 kHz
RMS Power
225 Watt
Frequency Response (-10 dB)
38 Hz - 2 kHz
Max. SPL
120 dB
Dimensions (W x H x D)
320 x 380 x 380 mm
Sensitivity (1W / 1m)
96 dB
Weight
xx kg
Impedance
8 Ohm
