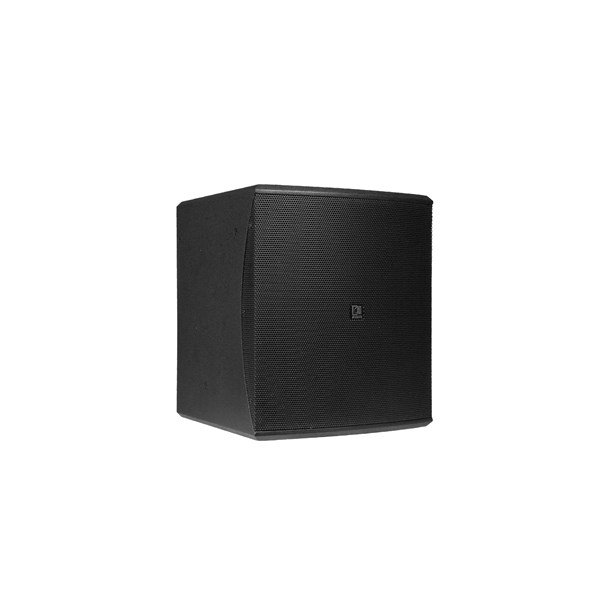

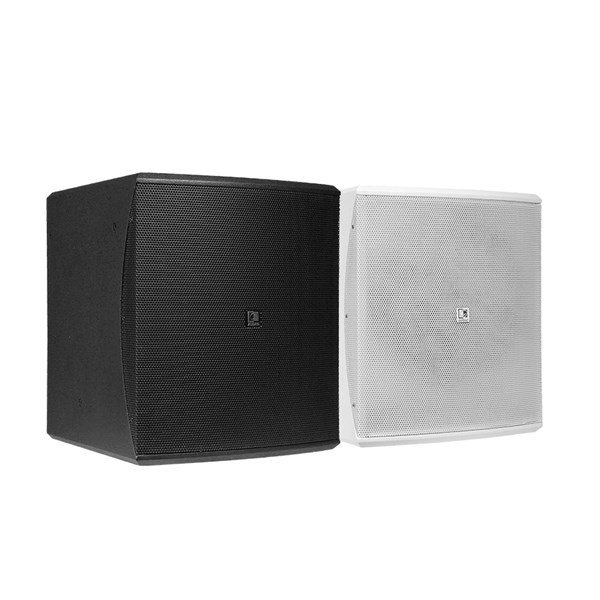

Audac BASO12 (Siyah) 12'' 500/1000W Bass-Reflex Pasif Kabin Hoparlör
Audac BASO12 (Siyah) 12" 500/1000W Bass-Reflex Pasif Kabin Hoparlör
The BASO cabinets are universally useable passive bass cabinets. Their bass reflex design is engineered to be as compact as possible while giving the maximum performance in terms of sound quality and pressure. Their enclosures are crafted out of sturdy high-quality plywood while their elegant design enables them to be placed in any environment.
The BASO12 is loaded with a 12” high-performance woofer with an RMS power rating of 500 Watt and maximum power of 1000 Watt. The strength of this loudspeaker originates from a 4” voice coil which is allowed to extra long excursions. Displacements are precisly controlled by the dual low-loss suspension resulting in a superior linear behaviour.
These carefully selected high-grade materials in collaboration with accurate acoustical craftmanship results in an impressive combination of punch and low frequency extension without compromises. The highly-efficient design results in a sensitivity of 98 dB with capability of continuous sound pressure production up to 125 dB. The frequency response ranges from 40 Hz up to 300 Hz while going down to 35 Hz at -10 dB.
Besides these acoustical aspects, a lot of attention has been paid to all other aspects making it as versatile as possible. The enclosure is compact designed without any sacrifice to robustness due to the 18 mm high-quality plywood material finished with structured coating.

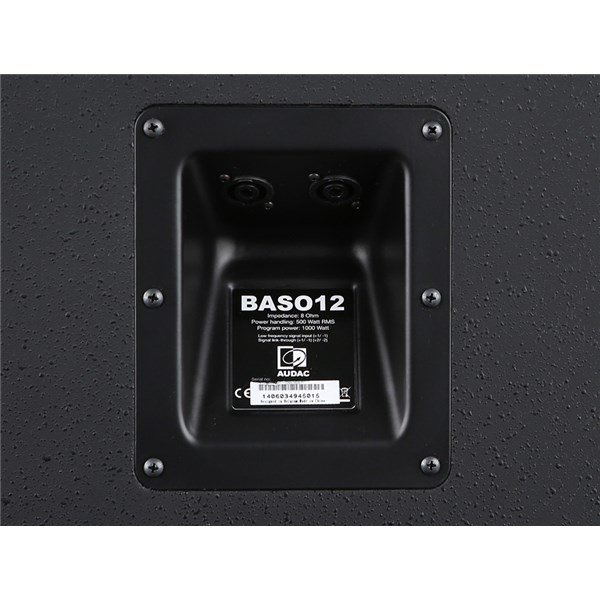

Connections are made using two speakon compatible connectors located in a recessed connector dish, allowing link-through to other cabinets. This also allows close placement to any wall or corner.
Compact & flexible design
High performance 12” driver
1000 Watt program power
125 dB of Max. SPL
40 Hz - 300 Hz freq response
18 mm plywood construction
Recessed connector dish
Dual low-loss suspension with 4” high-excursion voice coil
Max. Power
1000 Watt
Frequency Response (±3 dB)
40 Hz - 300 Hz
RMS Power
500 Watt
Frequency Response (-10 dB)
35 Hz - 600 Hz
Max. SPL
125 dB
Dimensions (W x H x D)
380 x 449 x 460 mm
Sensitivity (1W / 1m)
98 dB
Weight
22 kg
Impedance
8 Ohm
