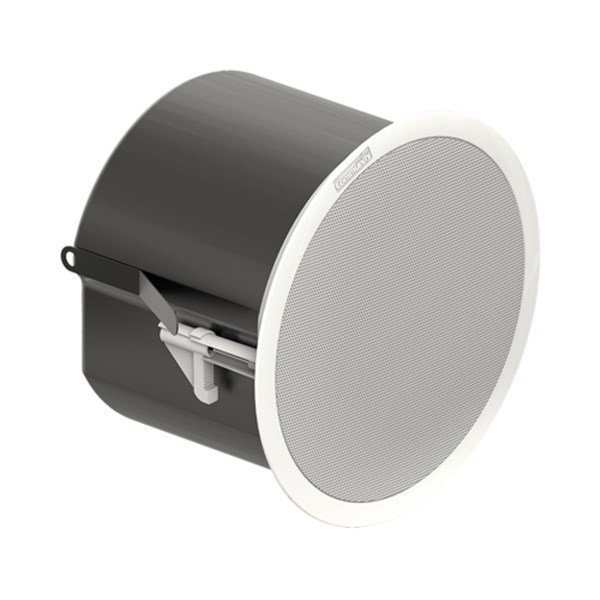

Community C8 İki Yollu 8-inch 60 Watt Coaxial Tavan Hoparlörü

Community C8 İki Yollu 8-inch 60 Watt Coaxial Tavan Hoparlörü

Loudspeaker Type: Two-way, full-range, coaxial ceiling loudspeaker, 8 Ohm or 70V/100V operation

Operating Range: 65 Hz - 13.5 kHz (-10 dB)

Frequency Response: 100 Hz - 12.5 kHz (-3 dB)

Max Input Ratings (8 Ohm): 60W continuous, 150W program, 21.9 volts RMS, 43.8 volts momentary peak

Transformer Taps:

70V: 30W, 15W, 7.5W, 3.75W, and 8 Ohm selectable

100V: 30W, 15W, 7.5W, and 8 Ohm selectable

Distortion:

500 Hz, 10% Full Power: 0.62% 2nd Harmonic, 0.27% 3rd Harmonic

500 Hz, 1% Full Power: 0.33% 2nd Harmonic, 0.07% 3rd Harmonic

2 kHz, 10% Full Power: 0.83% 2nd Harmonic, 0.88% 3rd Harmonic

2 kHz, 1% Full Power: 0.49% 2nd Harmonic, 0.38% 3rd Harmonic

8 kHz, 10% Full Power: 2.17% 2nd Harmonic, 0.15% 3rd Harmonic

8 kHz, 1% Full Power: 0.73% 2nd Harmonic, 0.06% 3rd Harmonic

Sensitivity (1W/1m): 91 dB SPL (100 Hz to 12.5 kHz 1/3 octave bands); 91 dB SPL (250 Hz to 4 kHz speech range)

Maximum Output:

8 Ohms: 109 dB SPL / 115 dB SPL (peak)

70V: 106 dB SPL / 112 dB SPL (peak)

100V: 106 dB SPL / 112 dB SPL (peak)

Nominal Impedance: 8 Ohms

Minimum Impedance: 7.6 ohms @ 200 Hz

Nominal Coverage: 120º conical (1 kHz to 6 kHz +/- 70°); 120° conical (500 Hz to 6 kHz +/-70°)

Axial Q / DI: 4.7 / 6.6, 500 Hz to 6 kHz

Crossover Frequency: 2 kHz

Recommended Signal Processing: 85 Hz, at 24 dB per octave high pass filter

Drivers: LF 1x 8" cone, HF 1x 3/4" exit compression driver

Driver Protection: Self-resetting solid state circuit breaker

Input Connection: 4-pole Euroblock connector with two pair of non-interrupt parallel connections

Controls: Front-face wattage / low impedance selector switch

Enclosure: Corrosion-resistant zinc plated steel

Finish: White

Mounting/Rigging Provisions: 2 ABS mounting clamps with 1.75-inch grip range

Grille: Powder coated steel with safety line, white finish, paintable

Baffle: Reflex loaded UL 94V-0 rated ABS

Safety Features: 2x safety hang points

Safety Agency Ratings: ETL listed to comply with UL1480, UL2043 and CSA60065. Suitable for use in air handling spaces per NFPA 70 and NFPA 90.

Required Accessories: Electronic high pass filter

Supplied Accessories: Tile support bridge rails, grille, paint mask, cut-out template, flat screwdriver

Optional Accessories:

C8-CATR Can Adapter / Trim Ring (white)

C8-GRL-B Black Grille

C8-NCB New Construction Bracket

Dimensions:

Width: 11.30 inches (287.0 mm) bezel diameter

Depth: 7.55 inches (191.8 mm) can depth

Cutout Diameter: 10.35 inches (263.0 mm)

Weight: 8.4 lbs (3.8 kg)
