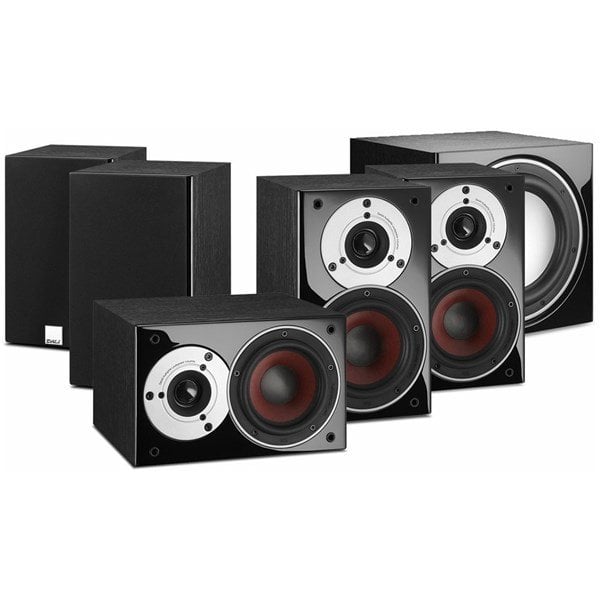

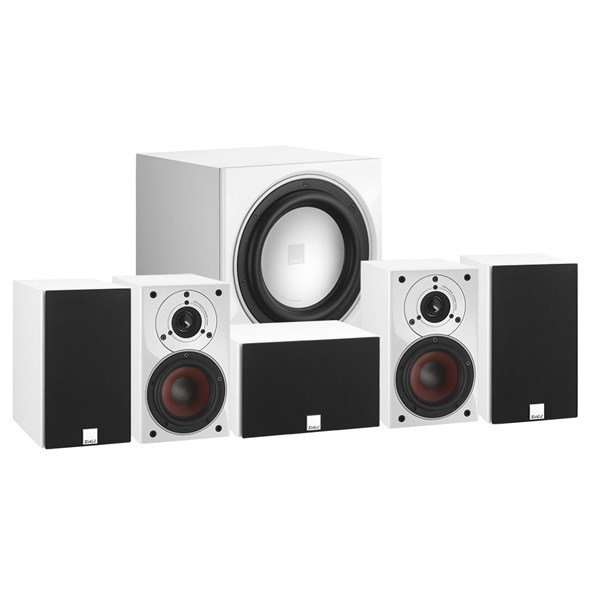

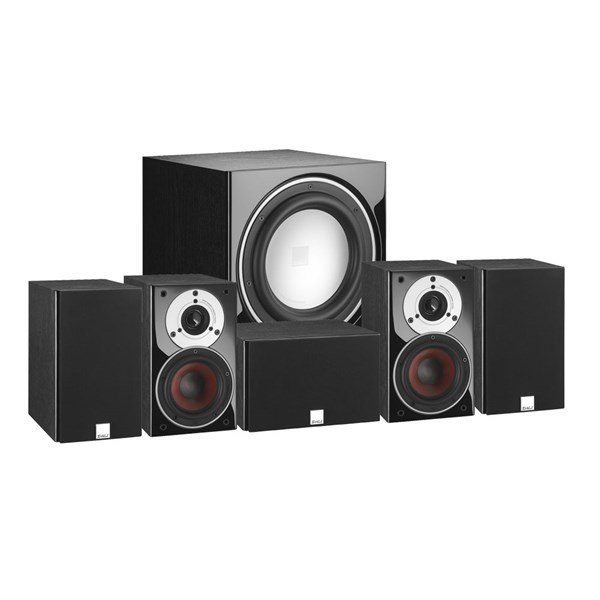

Dali Zensor Pico + Zensor Pico Vokal + Sub E9 F 5.1 Sinema Sistemi
Dali Zensor Pico
Finding space for high quality speakers is not always an easy task. Finding the room for traditional Hi-Fi speakers in the living room, bedroom or kids room is always a balance between performance and size. DALI now has the solution to this problem.
The ZENSOR PICO is an ultra compact high quality speaker with a very small footprint but a vast impact. Using technologies known from the award winning ZENSOR series in a perfect match between woofer and cabinet volume the ZENSOR PICO delivers astonishing detailed, coherent and full sound.
Despite its small size it fills the room and delivers a surprising bass performance. Though the ZENSOR PICO is about 30% smaller than the ZENSOR 1 in size, it is no smaller in sound. Place it close to the wall or directly on the wall for optimum performance.
ZENSOR PICO is a compact all-round stereo loudspeaker - ideal for small to medium sized rooms. Use it as front speaker in a 2.1 surround set-up or as front and back speaker in combination with theZENSOR PICO VOKAL in a 5.1 system including subwoofer, as the distinguished and discreet sound resource it is.
Distinguished by its well-known DALI signatures such as the light and yet stiff wood fibre cones delivering a highly dynamic, detailed, and undisturbed sound reproduction, while ultra-low mass dome tweeter material ensures a widely extended frequency range.
The ZENSOR PICO model also includes a ZENSOR PICO VOKAL for the ultimate compact surround experience.
Product Series | ZENSOR |
Speaker Type | Front Rear Surround |
Frequency Range (+/-3 dB) [Hz] | 62 - 26,500 |
Sensitivity (2,83 V/1 m) [dB] | 84.0 |
Nominal Impedance [?] | 6 |
Maximum SPL [dB] | 103 |
Recommended Amplifier Power [W] | 40 - 125 |
Crossover Frequency [Hz] | 2,000 |
High Frequency Driver | 1 x 25 mm Soft Textile Dome |
Low Frequency Driver | 1 x 4.50" Wood Fibre Cone |
Enclosure Type | Bass Reflex |
Bass Reflex Tuning Frequency [Hz] | 57.0 |
Connection input(s) | Single Wire |
Magnetic Shielding | No |
Recommended Placement | Keyhole mounting On-Wall Shelf Stand |
Dimensions With Base (HxWxD) [mm] | 230 x 141 x 196 |
Weight [kg] | 3.1 |
Accessories Included | Manual Rubber Bumpers |
Finding space for high quality speakers is not always an easy task. Finding the room for traditional Hi-Fi speakers in the living room, bedroom or kids room is always a balance between performance and size. DALI now has the solution to this problem.
The ZENSOR PICO VOKAL is an ultra compact high quality center speaker with a very small footprint. Using technologies known from the award winning ZENSOR series in a perfect match between woofer and cabinet volume the ZENSOR PICO VOKAL delivers astonishing detailed, coherent and full sound.
Despite its small size it fills the room and delivers a surprising bass performance. Place it close to the wall or directly on the wall for optimum performance.
ZENSOR PICO VOKAL is a compact loudspeaker - ideal for small to medium sized rooms. Use it in a 3.1 set-up or in a 5.1 surround system in combination with theZENSOR PICO, as the distinguished and discreet sound resource it is.
Distinguished by its well-known DALI signatures such as the light and yet stiff wood fibre cones delivering a highly dynamic, detailed, and undisturbed sound reproduction, while ultra-low mass dome tweeter material ensures a widely extended frequency range.
The ZENSOR PICO VOKAL also has an upright counterpart, the ZENSOR PICO. Combined they make the ultimate compact surround experience.
Product Series | ZENSOR |
Speaker Type | Center Front Surround |
Frequency Range (+/-3 dB) [Hz] | 62 - 26,500 |
Sensitivity (2,83 V/1 m) [dB] | 84.0 |
Nominal Impedance [?] | 6 |
Maximum SPL [dB] | 103 |
Recommended Amplifier Power [W] | 40 - 125 |
Crossover Frequency [Hz] | 2,000 |
High Frequency Driver | 1 x 25 mm Soft Textile Dome |
Low Frequency Driver | 1 x 4.50" Wood Fibre Cone |
Enclosure Type | Bass Reflex |
Bass Reflex Tuning Frequency [Hz] | 57.0 |
Connection input(s) | Single Wire |
Magnetic Shielding | No |
Recommended Placement | Keyhole mounting On-Wall Shelf Stand |
Dimensions With Base (HxWxD) [mm] | 141 x 230 x 196 |
Weight [kg] | 3.1 |
Accessories Included | Manual Rubber Bumpers |
Dali ZENSOR Sub E9 F
The launch of the DALI SUB E-9 F marks a new stage of what is possible at this level of subwoofers!
The new subwoofer from DALI features a 9" woofer, capable of moving lots of air with power and precision. The cone is made from pure aluminium for maximum stiffness and a becoming exterior. Furthermore, the heavy magnet system wields a massive 4-layer, long-stroke voice coil.
All in all, the heavy-duty abilities of this "motor system" ensure that the woofer always follows the signal from the amplifier!
The heart of this subwoofer is the 170W RMS Class D amplifier with a highly linear response. Embracing a classic DALI trademark, it simply acts as a total low frequency extension of your AV system. The result is a powerful, wellbalanced bass reproduction and flawless integration with your speakers. In addition, the integrated limiter helps protecting your subwoofer against overloading.
The back plate of SUB E-9 F features controls for volume adjustment, phase, and upper cut-off frequency, while the power on/off function works automatically via signal detection. And with the options for LFE or LINE inputs, this subwoofer easily accompanies any AV set up.
SUB E-9 F is elevated from the floor by cone shaped rubber feet, while a down-firing bass port allows positioning directly against the wall.
The DALI SUB E-9 F is recommended as compliment to the KUBIK FREE as well as the compact models of the ZENSOR and FAZON series. On top of this it is compatible with all DALI loudspeakers as the perfect completion of a DALI stereo or surround set up.
Product Series | SUBWOOFERS |
Speaker Type | Subwoofer |
Frequency Range (+/-3 dB) [Hz] | 37 - 200 |
Maximum SPL [dB] | 111 |
Crossover Frequency [Hz] | 40 - 120 |
Low Frequency Driver | 1 x 9" long stroke Aluminium |
Enclosure Type | Bass Reflex |
Bass Reflex Tuning Frequency [Hz] | 39.0 |
Max. Amplifier Power Output [RMS watt] | 220 |
Continous IEC Power Output [RMS watt] | 170 |
Input Impedance [?] | 25k |
Connection input(s) | Mono (LFE) RCA Stereo (low-pass filtered) |
Magnetic Shielding | No |
Recommended Placement | Floor Near wall or corner |
Recommended Distance From Wall [cm] | 10 - 30 |
Functions | Crossover Frequency Phase Switch Standby (Auto Power) On/Off Switch Volume (Gain) |
Maximum Power Consumption [W] | 250 |
Dimensions With Base (HxWxD) [mm] | 307 x 288 x 311 |
Weight [kg] | 11.0 |
Accessories Included | Manual |
Finish | Black Ash Vinyl Light Walnut Vinyl White Vinyl |
