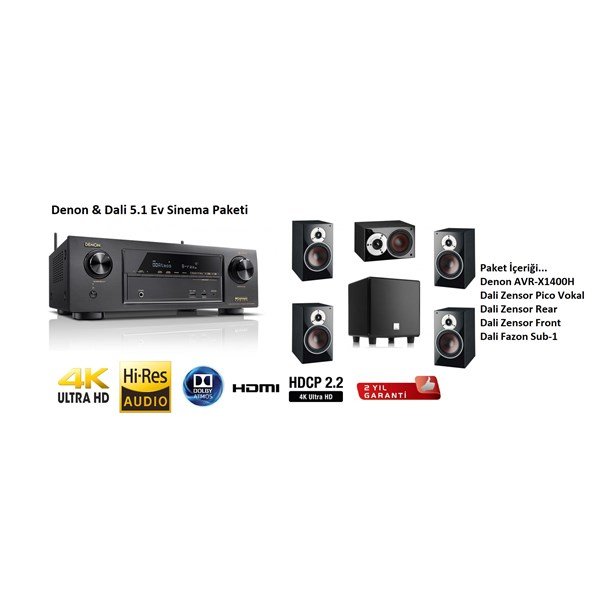

Denon AVR X1400H - Dali Zensor Pico 5.1 Ev Sinema Sistemi
Denon AVR X1400H - Dali Zensor Pico 5.1 Ev Sinema Sistemi
Paket İçeriği
Denon AVR X1400H
Dali Zensor Front
Dali Zensor Rear
Dali Zensor Fazon Sub 1
Dali Zensor Vokal
Denon AVR-X1400H 7.2-Channel Network A/V Receiver
Enjoy immersive multi-channel sound with theDenon AVR-X1400H 7.2-Channel Network A/V Receiver. It delivers up to 80W of power at 8 Ohms and features Dolby Atmos and DTS:X compatibility for object-based audio support. Built-in Bluetooth and AirPlay support allows the receiver to wirelessly stream music from compatible sources, such as smartphones and tablets. Onboard Wi-Fi and Ethernet connectivity allows the AVR-X1400H to access a variety of Internet-based music sources like Pandora, SiriusXM, and TuneIn Internet radio. As an added convenience, you can download the free Denon 2016 AVR Remote App to control the receiver from your Android or iOS devices.
With six HDMI inputs and one HDMI output, this receiver can act as a video switcher for your HD source components. It will pass through 4K signals along with HDR10 and Dolby Vision HDR formats. The receiver also has a USB port for accessing media stored on USB flash drives. Audyssey MultiEQ XT sound optimization will calibrate the receiver to your speakers and room setup for a tailored listening experience.
HEOS Wireless Multi-Room Music Streaming
Built-in HEOS technology allows the AVR-X1400H to become part of your HEOS wireless multi-room system, allowing you to enjoy your favorite music anywhere around your home. Share music stored on your home network, Internet radio, or streaming services, with HEOS wireless speakers or other HEOS-capable receivers throughout the house. It's all controlled by the free HEOS app, which can be installed on as many compatible smartphones and tablets as you like. The app gives you multi-room audio control, allowing you to command music in every room from any HEOS device; you can play different music from different sources in every room or group several rooms together and play the same song. The HEOS app will let you enjoy music from multiple streaming services, including Pandora, Spotify, TuneIn Internet radio, Amazon Music Unlimited, and more, or you can use the HEOS app to stream from your phone, USB stick, computer, or NAS drive on your home network.
Dolby Atmos
Dolby Atmos surround sound technology dispenses with channel-based coding in favor of more advanced object-based coding, giving the sound designer the ability to precisely place sounds anywhere in the 3-dimensional space. The AVR-X1400H features the ability to connect a 5.1-channel surround sound speaker system with additional overhead speakers, or additional Dolby Atmos-certified up-firing speakers.
DTS:X
DTS:X brings the home theater experience to new heights with its immersive object-based audio technology, which removes the bounds of channels. The flexibility of objects allows for sound to be scaled large or small and moved around the room, leading to a richer, more immersive audio experience.
4K Ultra HD, HDR10, Dolby Vision, and HDCP 2.2 Support
Featuring six HDMI ports, including one located on the front panel, plus an HDMI output, the AVR-X1400H is compatible with 4K Ultra HD 60 Hz content, 4:4:4 Pure Color sub-sampling, BT.2020, and HDR pass-through. It is also HDCP 2.2-compliant for 4K UHD copy-protected content. Dolby Vision pass-through is supported for enhanced contrast and color with compatible displays and content. Support for HLG (Hybrid Log-Gamma), the HDR format for broadcast video, is scheduled to be supported following a future firmware update.
Quad-Core 32-Bit DSP Processor
The AVR-X1400H features a quad-core 32-bit DSP processor for multi-thread processing tasks, including Dolby Atmos and DTS:X decoding, Audyssey room acoustic correction, bass management, and DSP surround simulation. The DSP chip features four 300 MHz DSP cores that can process over a billion computations per second.
High-Resolution Audio
The receiver can decode up to 24-bit/192 kHz lossless files, such as FLAC and WAV, plus ALAC/Apple Lossless, DSD 2.8 MHz (the audiophile format of SACD), and 5.6 MHz tracks. These can be played from memory devices via the front-panel USB port or network sources. MP3 and WMA files are also playable.
Built-In Bluetooth, Wi-Fi, and AirPlay Capability
Featuring Bluetooth and Wi-Fi wireless streaming connectivity, the AVR-X1400H is equipped with a dual-antenna system to minimize interference in wireless-congested environments. Connected to the Internet through your home Wi-Fi network or with a hard-wired connection via the Ethernet port, it allows you to enjoy your favorite tracks from streaming music services such as Spotify Connect. You can also choose from thousands of Internet radio stations from around the world, and enjoy audio entertainment of virtually every genre. Integrated AirPlay lets you play your favorite tracks wirelessly from your compatible iOS device, and via network streaming, you can listen to music files stored on your home Windows computer, Mac computer, or NAS device.
Denon 2016 AVR Remote App
With the free Denon 2016 AVR Remote app for iOS, Android, and Kindle Fire, you can control the receiver's operation, as well as accessing its setup menu, from your smartphone or tablet. The app also gives you access to the receiver's status display, option menus, control of Denon Blu-ray players, and an online owner's manual. Through the app, you can switch directly to the HEOS app for further control over your music contents, streaming services, and HEOS wireless multi-room control.
Discrete Amplification with Eco Mode
For enhanced realism and dynamic range, the amplifier section features discrete power devices for compatibility with a range of speakers down to four Ohms. Eco Mode adjusts the amplifier's output according to the volume level to reduce power consumption, with an on-screen Eco meter providing real-time monitoring of the power saving.
Dual Subwoofer Outputs
When positioned in different locations in the listening area, having two subwoofers instead of one will even out the low frequencies for more accurate bass nearly anywhere in the room.
Smart TV Connectivity
Using the HDMI CEC (consumer electronics control) functionality provided on some smart TVs, it's possible to control the receiver with your TV's remote. Set the receiver's "HDMI control" to on, choose the "Smart Menu" receiver control functions on the TV, and the Smart Menu home screen allows direct access to a range of receiver functions, including source and surround mode, the main setup menu, and the Quick Select "one-touch" presets.
Audyssey Silver
The Audyssey Silver suite of DSP functions includes MultEQ XT, Dynamic EQ, and Dynamic Volume. Audyssey MultEQ XT automatic room acoustic measurement and correction uses the included microphone and a test-tone sequence to calibrate your speakers to your room's acoustics to provide a smooth, natural tonal balance. Audyssey Dynamic EQ uses psychoacoustic algorithms to continually adjust tonal balance for enhanced sound quality, even at lower volume levels. Audyssey Dynamic Volume smooths out volume jumps, such as from loud commercials, for an easier viewing experience.
Audyssey MultEQ Editor App
This receiver supports the Audyssey MultEQ Editor app, which allows you to customize the sound more precisely to your room and your personal preferences. The app allows you to view the speaker detection results and the before and after results of the Audyssey calibration; you can then edit the resulting Audyssey curve for each channel pair, adjust the overall EQ frequency rolloff for each channel pair, and adjust the target sound curve high-frequency rolloff. This app is available for purchase from the Apple App Store, Google Play, and the Amazon App Store.
Multi-Source/Multi-Room
With the AVR-X1400H, it's possible to enjoy 5.1-channel surround in one room, while another zone plays another source, such as a CD or streaming audio. Either connect a pair of stereo speakers to the multi-room amplified outputs, or connect a separate stereo amp and speakers to the Zone 2 pre-outs, allowing full 7-channel surround sound in the main room with stereo sound in the second.
Designed for Ease of Setup and Use
The AVR-X1400H features a graphical on-screen display that's designed to be clear and easy to understand as it guides you through the setup process to ensure the correct configuration. The Setup Assistant and the included Quick Start Guide lead you step-by-step to optimize critical settings for the best possible sound and video quality with your system.
Quick Select Functions
There are four Quick Select Function buttons on the front panel and the remote, letting you choose your preferred input setup and sound mode for your favorite sources. You can also set up your favorite Internet radio station on a Quick Select button.
Front-Panel USB Port
With the front-panel USB port, you can connect a USB drive and listen to files from MP3 to DSD (2.8/5.6 MHz) and lossless FLAC (up to 24-bit/192 kHz).
Dali Zensor Pico Black
Finding space for high quality speakers is not always an easy task. Finding the room for traditional Hi-Fi speakers in the living room, bedroom or kids room is always a balance between performance and size. DALI now has the solution to this problem.
The ZENSOR PICO is an ultra compact high quality speaker with a very small footprint but a vast impact. Using technologies known from the award winning ZENSOR series in a perfect match between woofer and cabinet volume the ZENSOR PICO delivers astonishing detailed, coherent and full sound.
Despite its small size it fills the room and delivers a surprising bass performance. Though the ZENSOR PICO is about 30% smaller than the ZENSOR 1 in size, it is no smaller in sound. Place it close to the wall or directly on the wall for optimum performance.
ZENSOR PICO is a compact all-round stereo loudspeaker - ideal for small to medium sized rooms. Use it as front speaker in a 2.1 surround set-up or as front and back speaker in combination with theZENSOR PICO VOKAL in a 5.1 system including subwoofer, as the distinguished and discreet sound resource it is.
Distinguished by its well-known DALI signatures such as the light and yet stiff wood fibre cones delivering a highly dynamic, detailed, and undisturbed sound reproduction, while ultra-low mass dome tweeter material ensures a widely extended frequency range.
The ZENSOR PICO model also includes a ZENSOR PICO VOKAL for the ultimate compact surround experience.
Product Series | ZENSOR |
Speaker Type | Front Rear Surround |
Frequency Range (+/-3 dB) [Hz] | 62 - 26,500 |
Sensitivity (2,83 V/1 m) [dB] | 84.0 |
Nominal Impedance [?] | 6 |
Maximum SPL [dB] | 103 |
Recommended Amplifier Power [W] | 40 - 125 |
Crossover Frequency [Hz] | 2,000 |
High Frequency Driver | 1 x 25 mm Soft Textile Dome |
Low Frequency Driver | 1 x 4.50" Wood Fibre Cone |
Enclosure Type | Bass Reflex |
Bass Reflex Tuning Frequency [Hz] | 57.0 |
Connection input(s) | Single Wire |
Magnetic Shielding | No |
Recommended Placement | Keyhole mounting On-Wall Shelf Stand |
Dimensions With Base (HxWxD) [mm] | 230 x 141 x 196 |
Weight [kg] | 3.1 |
Dali Zensor Pico Vokal Black
Finding space for high quality speakers is not always an easy task. Finding the room for traditional Hi-Fi speakers in the living room, bedroom or kids room is always a balance between performance and size. DALI now has the solution to this problem.
The ZENSOR PICO VOKAL is an ultra compact high quality center speaker with a very small footprint. Using technologies known from the award winning ZENSOR series in a perfect match between woofer and cabinet volume the ZENSOR PICO VOKAL delivers astonishing detailed, coherent and full sound.
Despite its small size it fills the room and delivers a surprising bass performance. Place it close to the wall or directly on the wall for optimum performance.
ZENSOR PICO VOKAL is a compact loudspeaker - ideal for small to medium sized rooms. Use it in a 3.1 set-up or in a 5.1 surround system in combination with theZENSOR PICO, as the distinguished and discreet sound resource it is.
Distinguished by its well-known DALI signatures such as the light and yet stiff wood fibre cones delivering a highly dynamic, detailed, and undisturbed sound reproduction, while ultra-low mass dome tweeter material ensures a widely extended frequency range.
The ZENSOR PICO VOKAL also has an upright counterpart, the ZENSOR PICO. Combined they make the ultimate compact surround experience.
Product Series | ZENSOR |
Speaker Type | Center Front Surround |
Frequency Range (+/-3 dB) [Hz] | 62 - 26,500 |
Sensitivity (2,83 V/1 m) [dB] | 84.0 |
Nominal Impedance [?] | 6 |
Maximum SPL [dB] | 103 |
Recommended Amplifier Power [W] | 40 - 125 |
Crossover Frequency [Hz] | 2,000 |
High Frequency Driver | 1 x 25 mm Soft Textile Dome |
Low Frequency Driver | 1 x 4.50" Wood Fibre Cone |
Enclosure Type | Bass Reflex |
Bass Reflex Tuning Frequency [Hz] | 57.0 |
Connection input(s) | Single Wire |
Magnetic Shielding | No |
Recommended Placement | Keyhole mounting On-Wall Shelf Stand |
Dimensions With Base (HxWxD) [mm] | 141 x 230 x 196 |
Weight [kg] | 3.1 |
Following the trend of compact, stylish products delivering remarkable performance, the FAZON SUB 1 sets out to impress music- and movie lovers.
Although small in size the FAZON SUB 1 is among the highest performing ultra compact subwoofers in the market. With dimensions of only 255 x 230 x 255 mm FAZON SUB 1 is the most compact subwoofer ever built by DALI.
DALI FAZON SUB 1 features:
. The acoustics of the FAZON SUB 1 have been developed with a sonic balance delivering great performance on music as well as movies.
. Applying only subtle equalization ensures ultra low signal delay, effectively putting this compact subwoofer in a class of its own:
-Due to the superior time response of the FAZON SUB 1 the benefits of adding this subwoofer will be immediately appreciated by the consumer.
. Soft, absorbent high-grip rubber feet eliminate transmission of residual resonance to surfaces such as wooden floors.
. Controls for setting gain (volume), absolute polarity (phase), and upper cut-offfrequency.
. Low power consumption. Auto power off - automatic switching to energy savingidle mode (below 1 Watt) when sound is off.
. Optimized for corner positioning.
Great Sonic Performance
With a careful balance between signal equalization and time response that allows a well-defined and tight bass that follows the signal, the new FAZON SUB 1 offers musical and natural bass performance. Despite it's small appearance it will easily match the performance of a larger
subwoofer.
Product Series | Fazon |
Speaker Type | Subwoofer |
Frequency Range (+/-3 dB) [Hz] | 37 - 200 |
Maximum SPL [dB] | 103 |
Crossover Frequency [Hz] | 50 - 150 Hz |
Low Frequency Driver | 1 x 6½" Paper Fibre Cone |
Enclosure Type | Closed Box |
Max. Amplifier Power Output [RMS watt] | 150 |
Continous IEC Power Output [RMS watt] | 90 |
Input Impedance [?] | 22k |
Connection input(s) | Mono line level (LFE) RCA Stereo line level (low pass filtered) |
Magnetic Shielding | No |
Recommended Placement | Floor |
Recommended Distance From Wall [cm] | 5 - 15 |
Functions | Crossover Frequency LFE/LP Filter Switch Phase Switch Standby (Auto Power) On/Off Switch Volume (Gain) |
Maximum Power Consumption [W] | 195 |
Dimensions With Base (HxWxD) [mm] | 255 x 230 x 255 |
Weight [kg] | 7.5 |
Accessories Included | Manual Power Cord |
