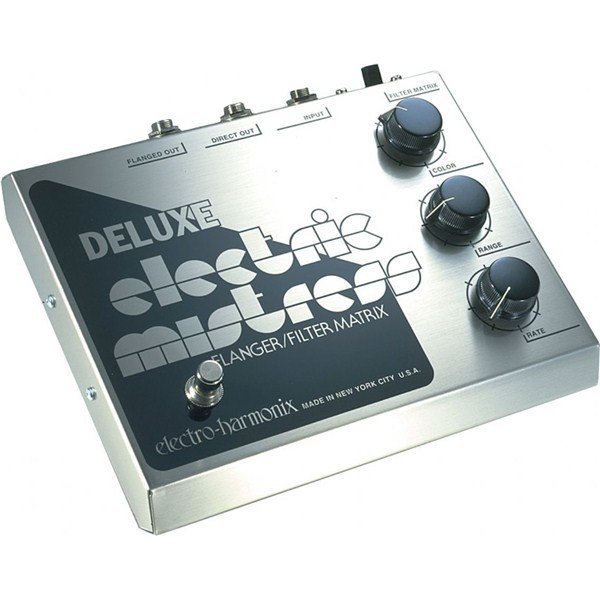

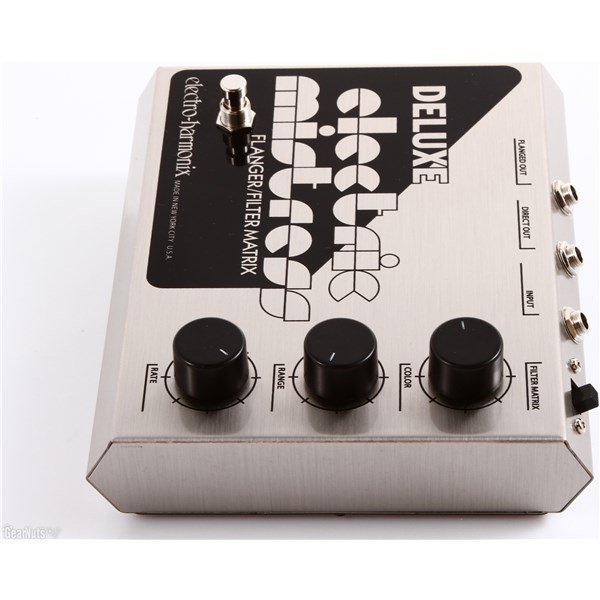

Electro Harmonix Deluxe Electric Mistress Flanger/Filter Pedalı

The ultimate flanger The Electric Mistress' array of critically notched and tuned filters gracefully sweep the sound spectrum, creating shimmering, ethereal passages that are truly out of this world. Exclusive "Filter Matrix" mode disengages the automatic sweep, allowing manual positioning of the filter bank to achieve chime-like metallic tones and other unique effects.

FLANGERMODE:

The flanging effect can be thought of as a pitch slowly sweeping between high and low limits
superimposed on the guitar signal. The RATE control allows you to change the rate at which
the effect occurs. With the RATE control fully counter-clockwise, the effect occurs at the
slowest rate. Turning the dial clockwise increases the rate to the point where the frequency of
the input signal appears to be shifted in a vibrato-like fashion.

The RANGE control allows you to set the lower limit of the sweep. Fully counter-clockwise
settings, where the lower limit is just below the higher, creates a very narrow sweeping effect.
Turning the RATE control clockwise lowers the low limit so that the sweep extends further into
the bass. In general, a faster rate (more cw) call for a narrower range setting (more ccw). A
convincing rotating speaker effect may be obtained by setting the rate near maximum, the
range near minimum, and the color approximately half-way.

FILTERMATRIXMODE:Pushing the slide switch into the FILTER MATRIX mode disengages the RATE control. The
RANGE control will now manually adjust the filter matrix. Proper manipulation of the range and
the COLOR controls will enable you to simulate the sound of chimes being played in unison with
your instrument, as well as many other effects.

The DELUXE ELECTRIC MISTRESS has been set at the factory for maximum color capacity in the
FLANGER mode. Setting the COLOR control at its most clockwise point could cause an
oscillation noise. This is normal! This oscillation may be reduced by a slight reduction of the
COLOR control.
