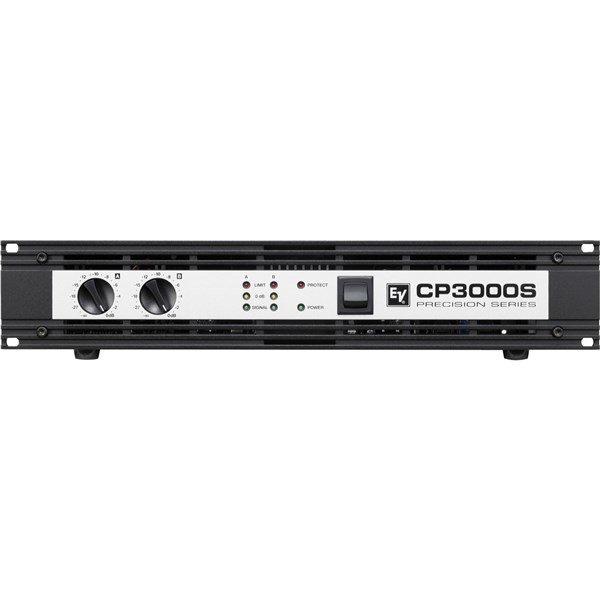

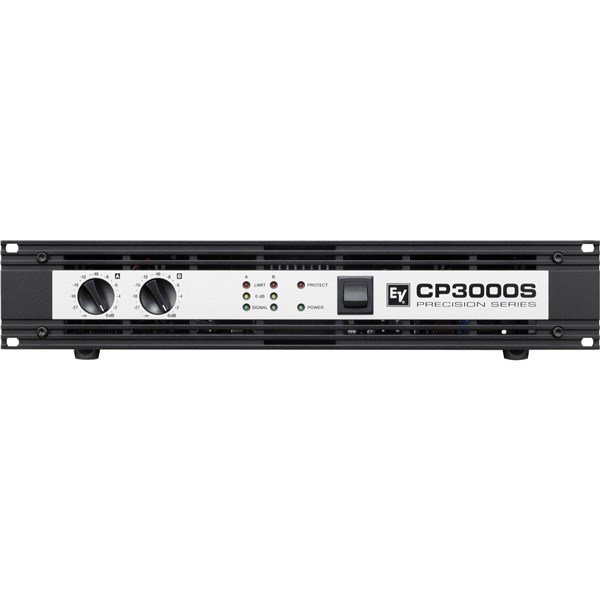

Electro Voice CP3000S 2x1100W/4 Ohm Güç Amplifikatörü
Electro Voice CP3000S 2x1100W/4 Ohm Güç Amplifikatörü
Electro-Voice's Precision Series Compact amplifiers offer proven Precision Series performance and reliability in a compact, lightweight format. This is made possible by incorporating a highly efficientClass-Hdesign, which results in considerably less heat being generated. This allows the overall size of theamplifierto be reduced substantially without sacrificing performance or reliability. The CP3000S is not only the first Precision Seriesamplifierto use a switch-mode power supply, but also the first switch-modeamplifierwith EV's Precision Seriessound. With up to 2 x 1600wattsinto 2ohmsand 2 x 1100wattsinto 4ohms, it is both powerful and lightweight, at only 17.96 lbs (8.15 kg). The CP3000S is state-of-the-art for all kinds of applications. It is specifically designed to allow for long-term driving of low loads into subwoofers without stress. The CP3000S's reliability and its pleasing, richsoundmake it the first choice for all mid- and hi-rangespeakercabinets.
Specifications:
AmplifierGain(dB): 32dB
Continuous rated power (1kHz,THD1%) 2Ω: 1600Watts
Continuous rated power (1kHz,THD1%) 4Ω: 1100Watts
InputImpedance(balanced): 20 kΩ
Continuous rated power (1kHz,THD1%) 8Ω: 600Watts
Continuous rated power (20-20kHz,THD<0,2%) 4Ω: 900Watts
Continuous rated power (20-20kHz,THD<0,2%) 8Ω: 450Watts
Maximumbridgedoutput 4Ω: 3200Watts
Maximumbridgedoutput 8Ω: 2200Watts
Electronics Type:Amplifier
Network Control (IRIS-Net): No
Total harmonicdistortion: < 0.05 %
IntermodulationDistortion(SMTPE): < 0.02 %
InputSensitivity: +5.8dBu
Weight Net: 8.15 kg ( 17.97 lbs )
Dimensions (HxWxD): 88.1 x 483 x 368.8 mm (3.47" x 19.02" x 14.52")
