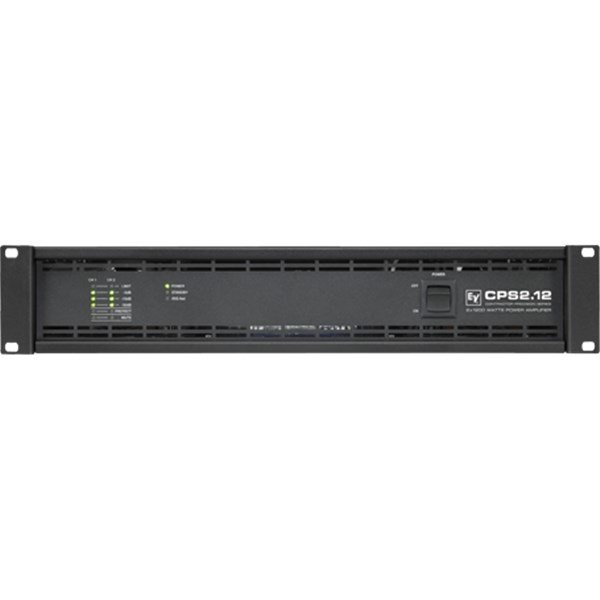

Electro Voice CPS2.12 MK II 2x1200 Watt Remote Kontrollü Güç Amplifikatörü
Electro Voice CPS2.12 MK II 2x1200 Watt Remote Kontrollü Güç Amplifikatörü
Designed for the contractor, the CPS 2.12 MK II feature 2-RU chassis, Phoenix-type connectors for inputs and outputs, pre-programmable power-on delay, easy power-on via remote contact closures, rear panel attenuators, and a switchable 50 Hz high-pass filter. Like the CPS multi-channel amplifiers, the CPS 2.12 MK II also includes a module slot for the RCM-810 remote-control module, enabling networking features for system diagnostics and control via IRIS-Net software.
Features:
Up to 2 x 2400 W into 2 ohms
Phoenix-type input and output connections
Remote power-on/off contact
Rear-mounted attenuators
Programmable time for custom power-on delay settings
Module slot for optional RCM-810 card, allowing IRIS-Net control and monitoring
Switchable 50 Hz high-pass filter
Three-stage front-to-rear fans
Class-H design
Complete protection package
Specifications:
Amplifier Gain: 32 dB
Analog Inputs: 2, electronically balanced, Phoenix-type
Audio Network: No
CAN Bus Interface: Optional (RCM-810 card)
Continuous Rated Power (1 kHz, THD 1%) 2Ω: 1800 Watts
Continuous Rated Power (1 kHz, THD 1%) 4Ω: 1200 Watts
Continuous Rated Power (1 kHz, THD 1%) 8Ω: 750 Watts
Continuous Rated Power (20-20 kHz, THD<0,2%) 4Ω: 1100 Watts
Continuous Rated Power (20-20 kHz, THD<0,2%) 8Ω: 550 Watts
Cooling: Front-to-Rear, 3-stage-fans
Crossover Type: Modular
DIM 30: 0.05 %
Electronics Type: Amplifier
Frequency Response: 10 Hz - 40 kHz ±1 dB
Impedance: 2/4/8 Ω
Input Impedance (Balanced): 20 kΩ
Input Sensitivity: +6.6 dBu (1.66 Vrms)
Intermodulation Distortion (SMPTE): 0.1 %
Mains Voltage: 240 V, 230 V, 120 V or 100 V; 50 Hz - 60 Hz (factory configured)
Maximum Bridged Output 4Ω: 3600 Watts
Maximum Bridged Output 8Ω: 2400 Watts
Maximum Input Voltage: +21 dBu (8.69 Vrms)
Network Control (IRIS-Net): Optional (RCM-810 card)
Slew Rate: 30 V/µs
Topology: Class-H
Total Harmonic Distortion: 0.03 %
Variable Load Drive (VLD): No
Height: 2RU 88.1 mm (3.47")
Width: 482.6 mm (19")
Depth: 421.5 mm (16.59")
Weight Net: 17.7 kg (39.02 lbs)
