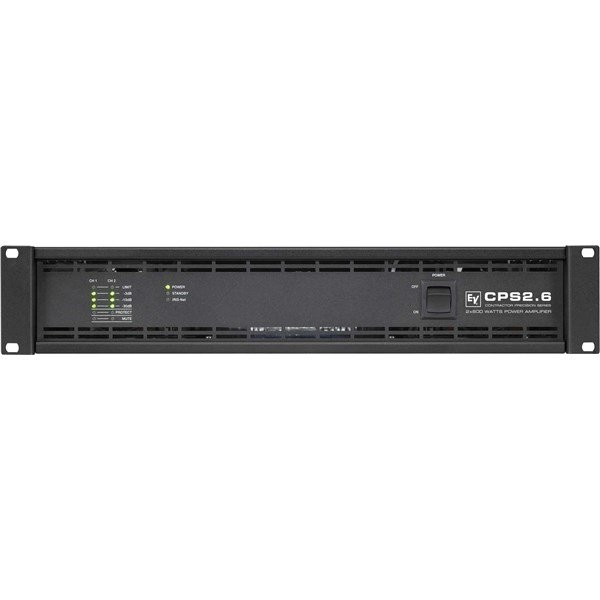

Electro Voice CPS2.6-II 2x600 Watt Remote Kontrollü Güç Amplifikatörü
Electro Voice CPS2.6-II 2x600 Watt Remote Kontrollü Güç Amplifikatörü
New CPS two-channel amplifiers provide flexibility and reliable audio performance for the professional installation business. Designed for the contractor, CPS two-channel amplifiers feature 2RU constructions, Phoenix-type connectors for inputs and outputs, pre-programmable power-on delay, easy power-on remote via contact enclosure, rear level controls, and a switchable, 50Hz high-pass filter (HPF).
Various optional signal processing modules include 500Hz and 800Hz crossovers for cinema systems as well as the XHP Variable high-pass module for ZX, Sx and EVID loudspeakers.
Like the CPS multi-channel amplifiers, CPS two-channel models also include a module slot for the RCM-810 remote-control module, enabling networking services for remote system diagnostics and control via IRIS-Net software.
Features
Designed for Cinema, Club Sound, Commercial Sound/Life Safety, House of Worship, Performance & Sports Venues, Stadium Systems, and other applications
Up to 2 x 900W into 2 ohms
Phoenix-type input and output connections
Remote power-on/off contact
Rear-mounted attenuators
Programmable time for custom power-on delay settings
Module slot for optional RCM-810 card, allowing IRIS-Net control and monitoring
Switchable 50Hz high-pass filter
Three-stage front-to-rear fans
Class-H design
Complete protection package
Specifications
Maximum Midband Output Power (THD=1%, 1kHZ):
2 x 900W @ 2 ohms
2 x 600W @ 4 ohms
2 x 380W @ 8 ohms
Rated Output Power (THD <0.3%, 20Hz-20kHz)
2 x 500W @ 4 ohms
2 x 250W @ 8 ohms
Maximum Bridged Output Power (THD=1%, 1kHz)
1 x 1800W @ 4 ohms
1 x 1200W @ 8 ohms
Maximum RMS Voltage Swing (THD=1%, 1kHz, per channel): 65.1V
Power Bandwidth (THD=1% ref.1kHz, half power @ 4 ohms load): 10Hz-30kHz
Voltage Gain, ref. 1kHz: 32.0 dB
THD at rated output power (MBW=80kHz, 1kHz): <0.03%
IMD-SMPTE, 60Hz, 7kHz: <0.1%
DIM30, 3.15kHz, 15kHz: <0.05%
Maximum Input Level: +21dBu
Crosstalk, ref. 1kHz at rated output power: <80dB
Frequency Response, ref. 1kHz: 10Hz-40kHz (+/-1dB)
Input Impedance, active balanced: 20k ohms
Damping Factor, 1khz, 8 ohms: >300
Slew Rate: 26V/us
Output Noise, A-weighted: <-71dBu
Output Stage Topology: ClassAB
Power Consumption, 1/8 max. output power @ 4 ohms: 700W
Power Requirements: 240V, 230V, 120V or 100V; 50Hz or 60Hz (factory configured)
Protections: Audio Limiters, Temperature, DC, HF Short Circuit, Peak Current Limiters, Inrush Current Limiters, Turn-on Delay
Cooling: Front-to-rear, 3-stage fans
Ambient Temperature Limits: 40 to 105 deg. F
Safety Class: I
Dimensions (W x H x D): 19" x 34.7" x 16.6"
Weight: 32.8 lbs
Optional Accessories:
2-way internal X-Over cards, 24dB, LR, XHP-5 for 500Hz/XHP-8 for 800Hz
RCM-810 IRIS-Net Control & Supervision Module
Rear-Rackmount Kit RMK-15
