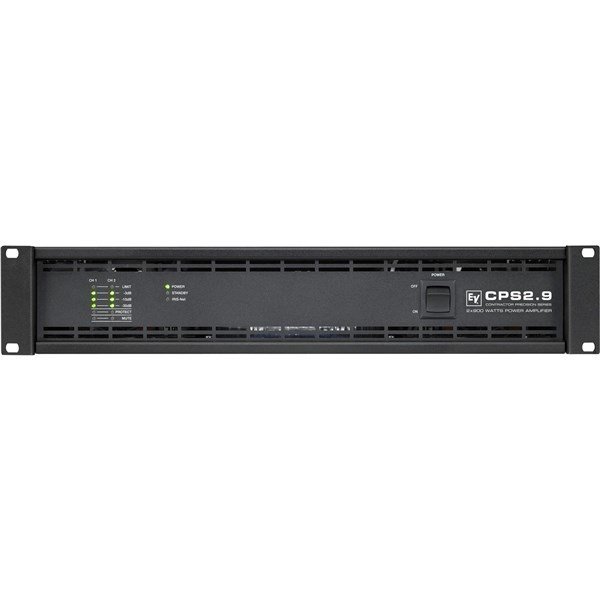

Electro Voice CPS2.9 MK II 2x900 Watt Remote Kontrollü Güç Amplifikatörü
Electro Voice CPS2.9 MK II 2x900 Watt Remote Kontrollü Güç Amplifikatörü
Designed for the contractor, the CPS 2.9 MK II feature 2-RU chassis, Phoenix-type connectors for inputs and outputs, pre-programmable power-on delay, easy power-on via remote contact closures, rear panel attenuators, and a switchable 50 Hz high-pass filter. Like the CPS multi-channel amplifiers, the CPS 2.9 MK II also includes a module slot for the RCM-810 remote-control module, enabling networking features for system diagnostics and control viaIRIS-Netsoftware.
Features
Up to 2 x 1250 W into 2 ohms
Phoenix-type input and output connections
Remote power-on/off contact
Rear-mounted attenuators
Programmable time for custom power-on delay settings
Module slot for optional RCM-810 card, allowing IRIS-Net control and monitoring
Switchable 50 Hz high-pass filter
Three-stage front-to-rear fans
Class-H design
Complete protection package
Özellikler
Amplifier Gain | 32dB |
Analog Inputs | 2, electronically balanced, Phoenix-type |
Audio Network | No |
CANBus Interface | Optional (RCM-810 card) |
Continuous Rated Power (1kHz,THD1%) 2Ω | 1250 Watts |
Continuous Rated Power (1kHz,THD1%) 4Ω | 900 Watts |
Continuous Rated Power (1kHz,THD1%) 8Ω | 550 Watts |
Continuous Rated Power (20-20kHz,THD<0,2%) 4Ω | 800 Watts |
Continuous Rated Power (20-20kHz,THD<0,2%) 8Ω | 400 Watts |
Cooling | Front-to-Rear, 3-stage-fans |
Crossover Type | Modular |
DIM 30 | 0.05 % |
Electronics Type | Amplifier |
Frequency Response | 10 Hz - 40 kHz ±1dB |
Impedance | 2/4/8 Ω |
Input Impedance (Balanced) | 20 kΩ |
Input Sensitivity | +5.1 dBu (1.39 Vrms) |
Intermodulation Distortion (SMPTE) | 0.1 % |
Mains Voltage | 240 V, 230 V, 120 V or 100 V; 50 Hz - 60 Hz (factory configured) |
Maximum Bridged Output 4Ω | 2800 Watts |
Maximum Bridged Output 8Ω | 1800 Watts |
Maximum Input Voltage | +21 dBu (8.69 Vrms) |
Network Control (IRIS-Net) | Optional (RCM-810 card) |
Slew Rate | 27 V/µs |
Topology | Class-H |
Total Harmonic Distortion | 0.03 % |
Variable Load Drive (VLD) | No |
Height | 2RU88.1mm(3.47") |
Width | 482.6mm(19") |
Depth | 421.5mm(16.59") |
Weight Net | 16.3kg(35.94lbs) |
