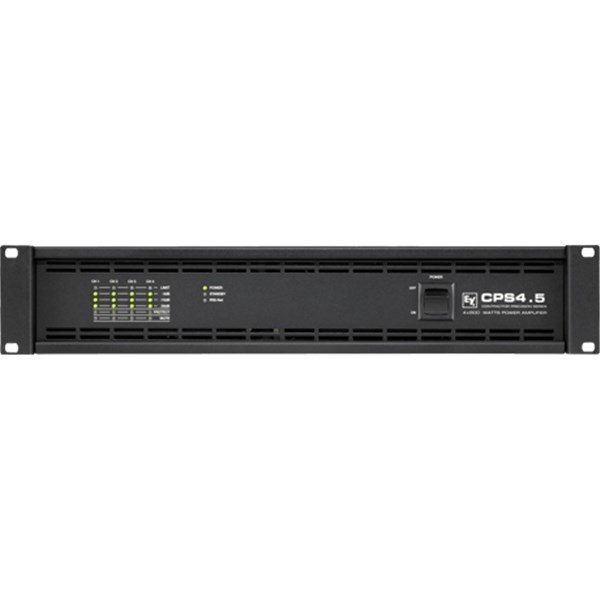

Electro Voice CPS4.5 4x500W/100-70V D-Class Güç Amplifikatörü
Electro Voice CPS4.5 4x500W/100-70V D-Class Güç Amplifikatörü
The CPS4.5 is a four-channel amplifier from Electro-Voice featuring groundbreaking Class-D technology for maximum amp efficiency. Power into 2 Ohms, 4 Ohms, 70V or 100V lines are all possible, and no transformer is required. Additionally, amplifier channels can be bridged in pairs for double output power. A module slot for the optional RCM-810 remote control module provides control network functionality, allowing for remote system diagnostics via IRIS-Net software as well as Variable Load Drive (VLD).
Features:
Designed for Cinema, Club Sound, Commercial Sound/Life Safety, Performance & Sports Venues, Stadium Systems, and other applications.
Four amplifier channels, each can be run as either low or high impedance, delivering up to 500 W per channel
Phoenix-type input and output connections
Remote power-on/off contact
Rear-mounted attenuators
Module slot for optional RCM-810 card, allowing IRIS-Net control and monitoring
Optional RCM-810 card allows for VLD configuration in IRIS-Netallowing configuration of each output channel’s power to match any load from 2-10 ohms in 0.1 ohm steps
50 Hz high-pass filter when operating in Hi-Z mode
Class-D design for optimum efficiency
Complete protection package
Specifications:
Amplifier Gain32 dB (Lo-Z), 33 dB (70V), 36 dB (100V)
Analog Inputs4, electronically balanced, Phoenix-type
Audio NetworkNo
CAN Bus InterfaceYes (With Optional RCM-810 Card)
Continuous Rated Power (1 kHz, THD 1%) 100v500 Watts
Continuous Rated Power (1 kHz, THD 1%) 2ohm 500 Watts
Continuous Rated Power (1 kHz, THD 1%) 4ohm 500 Watts
Continuous Rated Power (1 kHz, THD 1%) 70v500 Watts
Continuous Rated Power (1 kHz, THD 1%) 8?250 Watts
Continuous Rated Power (20-20 kHz, THD<0,2%) 100v450 Watts
Continuous Rated Power (20-20 kHz, THD<0,2%) 4ohm 450 Watts
Continuous Rated Power (20-20 kHz, THD<0,2%) 70v450 Watts
Continuous Rated Power (20-20 kHz, THD<0,2%) 8ohm 225 Watts
CoolingFront-to-Rear, continuously variable fans
DIM 300.02 %
Electronics TypeAmplifier
Frequency Response15 Hz-30 kHz
Input Impedance (Balanced)20 kO
Input Sensitivity0 dBu (.775V)-2 Ω, +3 dBu (1.1V)-4/8 Ω, +6 dBu (1.55) 70V/100V
Input Sensitivity0 dBu (.775V)-2 Ω, +3 dBu (1.1V)-4/8 Ω, +6 dBu (1.55) 70V/100V
Intermodulation Distortion (SMPTE)0.05 %
Mains Voltage220 - 240 V, 50 - 60 Hz or 120 V, 50 - 60 Hz, 50 - 60 Hz
Maximum Bridged Output 4?1000 Watts
Maximum Bridged Output 8?1000 Watts
Network Control (IRIS-Net)Optional
Slew Rate28 V/µs
Total Harmonic Distortion0.05 %
Variable Load Drive (VLD)Yes
Height2RU 88.1 mm (3.47")
Width481 mm (18.94")
Depth421.5 mm (16.59")
Weight Net11.1 kg (24.47 lbs)
