Electro Voice PA 2250T 2x250W/100V Güç Amplifikatörü
Electro Voice PA 2250T 2x250W/100V Güç Amplifikatörü

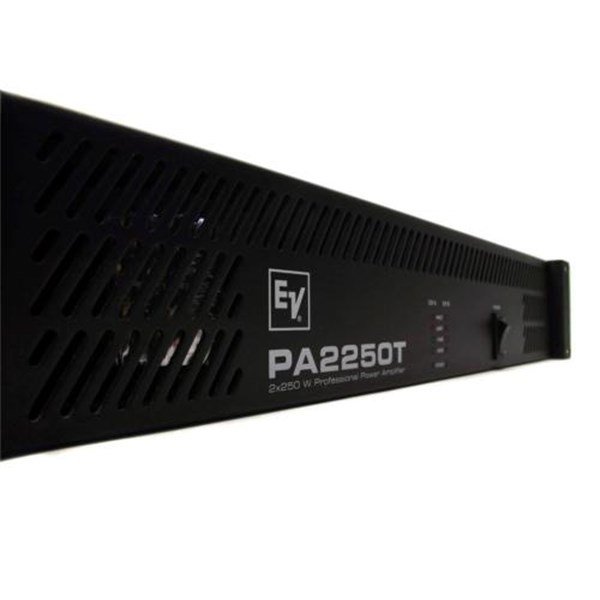

The Electro-Voice® PA2250T is from the PA series of professional commercial audio amplifiers. The direct-path airflow design significantly reduces heat buildup and allows for more reliable operation in slim, two-rack space chassis. The superior audio performance of the PA2250T fulfills the requirements of many demanding, long-term applications such as sound reinforcement, paging, or life safety installations.

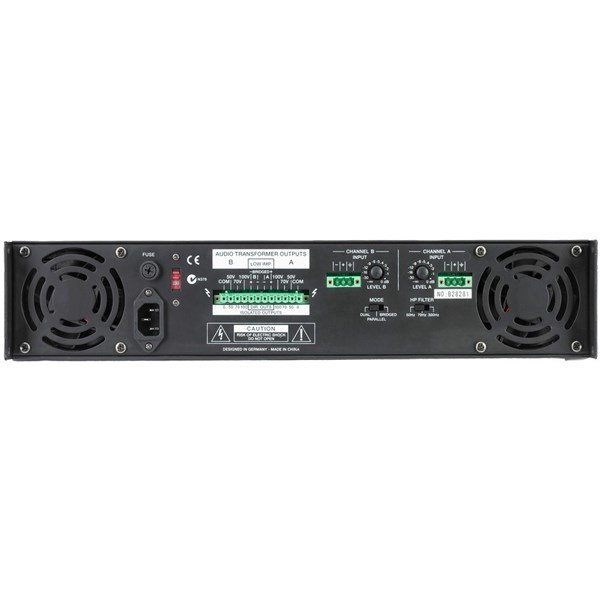

High-performance toroidal power and output transformers combine clean, saturation-free audio performance with cool operation. The PA2250T features many of the same comprehensive protection circuits typical of EV amplifiers. Complete protection is provided for high temperature, audio limiters, power-up delay, and peak current limiters. In addition to the rated output power, the PA2250T provides excellent headroom for wide dynamic range on music signals. The onboard dynamic limiter ensures that the output clipping of the PA2250T will not generate excessive distortion. The amplifier channels can be bridged for more power flexibility. Marked level controls on the rear panel provide hidden and reliable level adjustments for each channel. Front panel LEDs indicate signal present, zero dB, and limit. Phoenix-type connectors for inputs and outputs allow for easy rack wiring.
Specifications
Amplifier Gain (dB) 34.3dB
Continuous rated power (1k Hz, THD 1%) 4? 270 Watts
Continuous rated power (1k Hz, THD 1%) 8? 135 Watts
Continuous rated power
(20-20k Hz, THD<0,2%) 4ohm 250 Watts
Continuous rated power
(20-20k Hz, THD<0,2%) 8ohm 125 Watts
Continuous rated power (1k Hz, THD 1%) 100v 270 Watts
Continuous rated power (1k Hz, THD 1%) 70v 270 Watts
Continuous rated power
(20-20k Hz, THD<0,2%) 100v 250 Watts
Continuous rated power
(20-20k Hz, THD<0,2%) 70v 250 Watts
Network Control (IRIS-Net) No
Total harmonic distortion < 0.1 %
Intermodulation Distortion (SMTPE) < 0.1 %
DIM 30 < 0.1 %
Input Sensitivity 0 dBu
Weight Net23.5 kg ( 51.81 lbs )
Dimensions (HxWxD)88 x 483 x 406 mm
(3.46" x 19.02" x 15.98")
