Electro Voice ZX5 60W 15 inch 600 Watt Pasif Kabin Hoparlör
Electro Voice ZX5 60W 15 inch Pasif Kabin Hoparlör 600/1200/2400 Watt

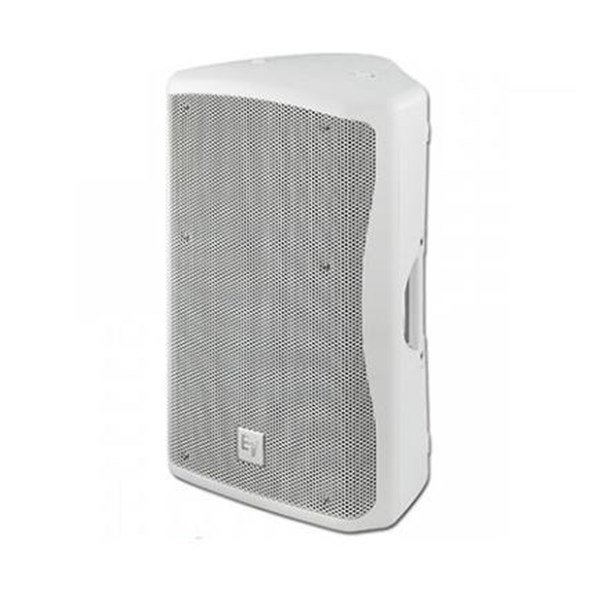

The Electro-Voice ZX5-60B is a 15" two-way 600 watt full-range passive loudspeaker that features a 60º x 60º dispersion pattern.
Features:
Versatile performance for mains, fills, or monitors
DVX3150A woofer with forced-air cooling
2-inch ND2 titanium/neodymium HF driver
Switchable bi-amp or passive crossover operation
60º x 60º coverage horn
High sensitivity, 132 dB maximum SPL
Power handling: 600 W continuous, 2400 W peak
High impact polypropylene enclosure
Wedge shape for monitors at 45º or 55º
Up to five anchor-plate attachments
M8 mounting inserts (10)
Integrated handle
Specifications:
Chassis Size: 15" (381 mm)
Color: White

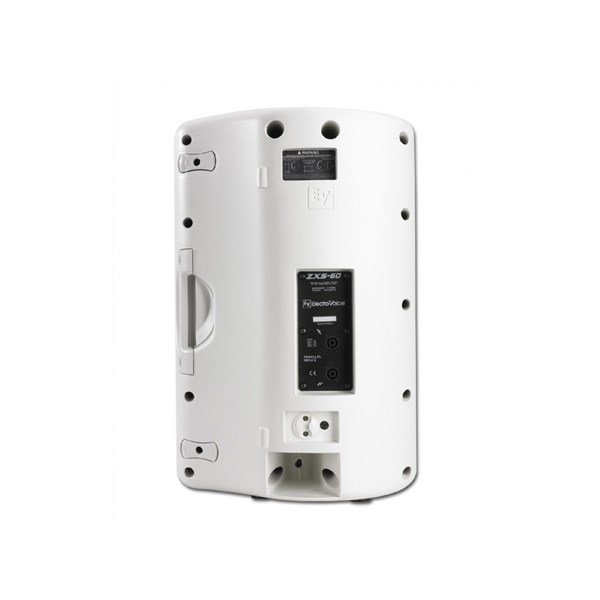

Input Connections: Parallel Neutrik® NL4
Speaker Type: Full-range, Mid-High, Two-Way, Wedges
Frequency Response (-3 dB): 58 Hz - 18 kHz
Frequency Response (-10 dB): 39 Hz - 20 kHz
Internal Crossover: Switchable biamp or passive crossover
Recommended High-Pass Frequency: 36 Hz
Sensitivity 1 W/1 m: 98 dB
Max. SPL/1m (calc): 132 dB
Coverage (Nominal -6 dB) H: 90/60°
Coverage (Nominal -6 dB) V: 50/60°
System Power Handling (Continuous/Program/Peak): 600//2400 Watts
LF Transducer: 15-inch DVX3150A
LF Power Handling: 500 Watts
HF Power Handling: 40 Watts
LF Nominal Impedance: 8 ohms
HF Transducer: 2-inch ND2
HF Nominal Impedance: 8 ohms
Crossover Frequency: 1500 Hz
Nominal Impedance (Passive): 8 ohms
Minimum Impedance: 6.5 ohms
Enclosure Material: High Impact Polystyrene
Flying: Yes
Outdoor: Yes
Grill: Polyester Powder Coated, 18GA Galvanized Steel
Height: 27.24" (692 mm)
Width: 17.56" (446 mm)
Depth: 16.18" (411 mm)
Weight (Net): 48.94 lbs (22.2 kg)
