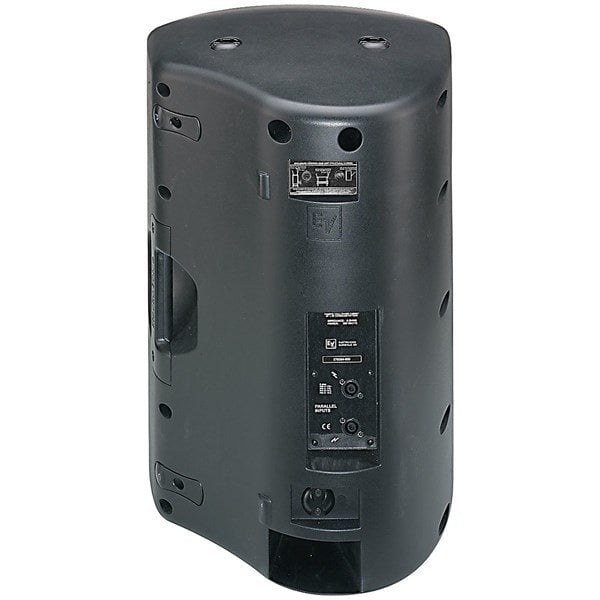

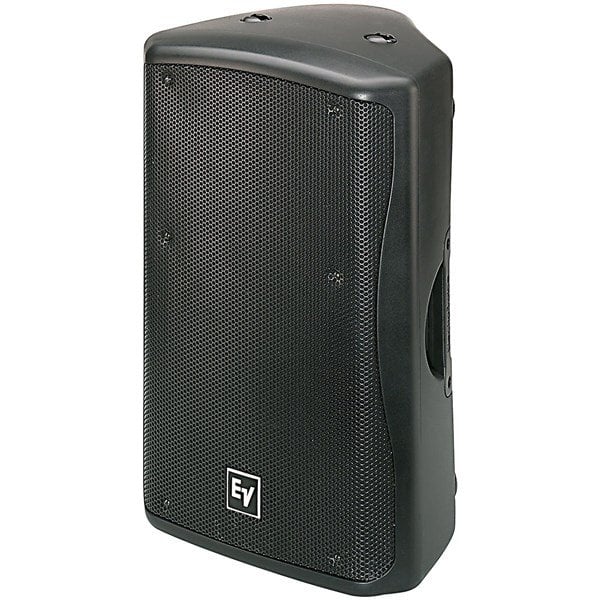

Electro Voice ZX5 90B 15 inch 600 Watt Pasif Kabin Hoparlör
Electro Voice ZX5 90B 15 inch Pasif Kabin Hoparlör 600/1200/2400 Watt
FEATURES
DVX3150 15" LF transducer with forced air cooling
ND2 2" voice coil, 1" exit neodymium compression driver
90° x 50° coverage pattern
600W continuous (2400W) powerhandling
High sensitivity, 132 dB maximum SPL
Adjustable monitor angle (45° or 55°)
3 anchor plates for single stud fittings and
10 integral suspension points
Available in black or white
Passive/bi-amp selectable
SPECIFICATIONS
Recommended High-Pass Frequency: 36 Hz
Sensitivity 1W/1m: 98 dB
Max. SPL / 1m (calc): 132 dB
Coverage (nominal -6dB) H°: 60°
Coverage (nominal -6dB) V°: 60°
System Power Handling (continuous/program/peak): 600/1200/2400 watts
Low Frequency Power Handling (continuous/program/peak): 500/1000/2000 watts
High Frequency Power Handling (continuous/program/peak): 40/80/160 watts
LF Transducer: DVX3150
HF Transducer: ND2
Crossover Frequency: 1500 Hz
Nominal Impedance (Passive): 8 Ohms
LF Nominal Impedance: 8 Ohms
HF Nominal Impedance: 8 Ohms
Minimum Impedance: 6.5 Ohms
Color: Black
Color: White
Flying: Yes
Input Connections: Parallel Neutrik NL4
Outdoor: Yes
Chassis Size: 15"
Internal Crossover: Selectable
Speaker Type: Fullrange, Mid-High, Two-Way, Wedges
Weight Net: 22.5 kg ( 49.6 lb.)
Dimensions (HxWxD): 692 x 446 x 411 mm
(27.24" x 17.56" x 16.18")
