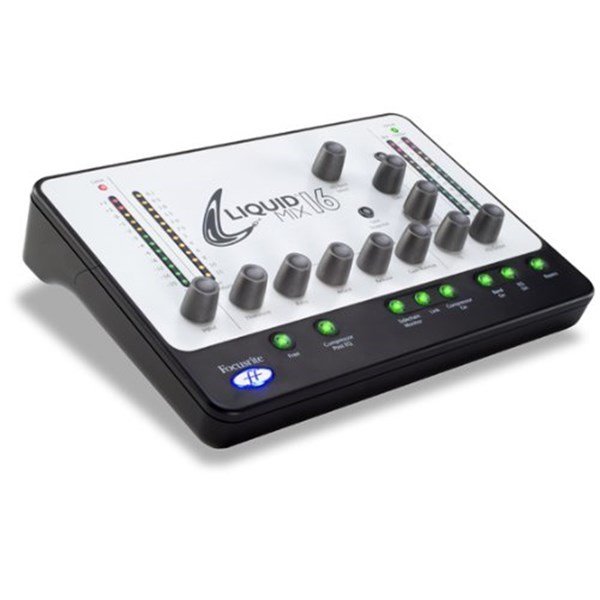

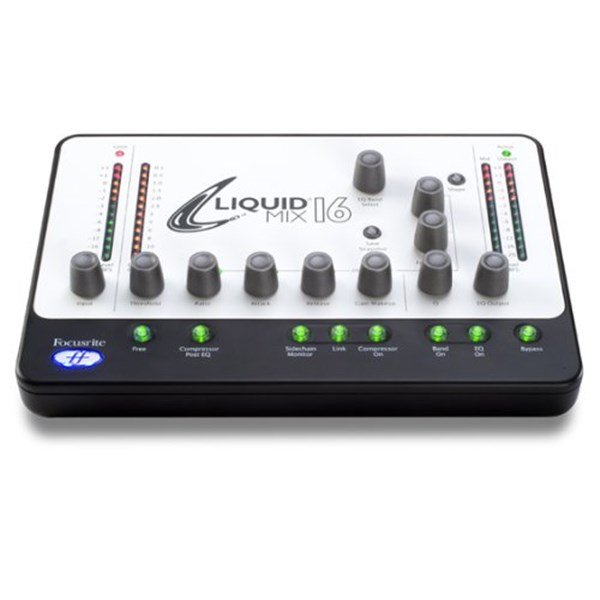

Focusrite Liquid Mix 16 Firewire 16 Kanal Mix İşlemcisi
Focusrite Liquid Mix 16 Firewire 16 Kanal Mix İşlemcisi
System Requirements
Windows - Operating System
VST, RTAS
Windows(R) XP Service Pack 2 (Home, Professional, or Media Centre Edition) or Windows Vista (32bit only) - OS Version subject change
Min version of ProTools required - 7.0 if planning to use the included FXpansion (earlier versions will require the full Fxpansion VST wrapper.)
Computer
Windows(R) XP compatible PC (Pentium(c) 4 2GHz or higher recommended)
400Mb/s IEEE1394/FireWire port (OHCI compliant recommended)
DVD drive required for Installation
CPU/Clock
1.4 GHz Intel or compatible
2.0 GHz Pentium(c) 4 or Xeon recommended
Memory (RAM)
256MB or more
512MB or higher recommended
Apple Mac - Operating System
AU, VST, RTAS
Mac OS X Panther (10.3.9 or later) - OS Version subject change
Min version of Logic required - Logic 7.1, but 7.2 highly recommended
Min version of ProTools required - 7.0 if planning to use the included FXpansion (earlier versions will require the full Fxpansion VST wrapper.)
Computer
Apple Mac Power PC G4, G5 or Intel Mac (any)
CPU/Clock
G4/800 MHz (minimum)
G4/1.5GHZ or higher recommended
Memory (RAM)
256MB or more
512MB or higher recommended
Additional Information
Firewire chipsets from TI (Texas Instruments), VIA, and NEC are recommended
It is highly recommended that Liquid Mix be run on its own Firewire bus/card
In order to use Liquid Mix with a 4-pin IEEE1394 port you will need a 4-pin to 6-pin cable (not included) and must use the PSU (included)
Latency
Due to the round trip transmission which is required on the firewire bus, a delay equal to 2 x the audio buffer size + 8 samples is incurred. This sample delay results in different amounts of time delay depending upon sampling frequency. With a DAW buffer size of 1024 samples (ie, Liquid Mix latency of 2056 samples), the Liquid Mix latency is as follows:
- 47 ms @ 44.1kHz
- 43 ms @ 48kHz
- 23 ms @ 88.2kHz
- 21 ms @ 96kHz
With a DAW buffer size of 256 samples (ie, Liquid Mix latency of 520 samples), the Liquid Mix latency is as follows:
- 12 ms @ 44.1kHz
- 11 ms @ 48kHz
- 6 ms @ 88.2kHz
- 5 ms @ 96kHz
Sequencer compatibility
Liquid Mix 16 operates as VST, AU, or as a RTAS-wrapped VST within compatible hosts.
Cubase 4 on Intel Macs does not support VST 2.3 plugins. If you want to use Liquid Mix 16 with Cubase 4 on an Intel Mac, you must install the Liquid Mix 2.4 VST plugins available separately on the Liquid Mix downloads page.
Optional Expansion Card details
The card is suitable for those people interested in increasing the channel count. The channel count increases as follows:
Channel Counts:
- 44.1kHz/48kHz: 16 channels mono, (8 stereo) unexpanded. Expansion card provides 24 mono / 12 stereo
- 88.2/96kHz: 4 channels mono, (2 stereo) unexpanded. Expansion card provides 8 mono / 4 stereo
