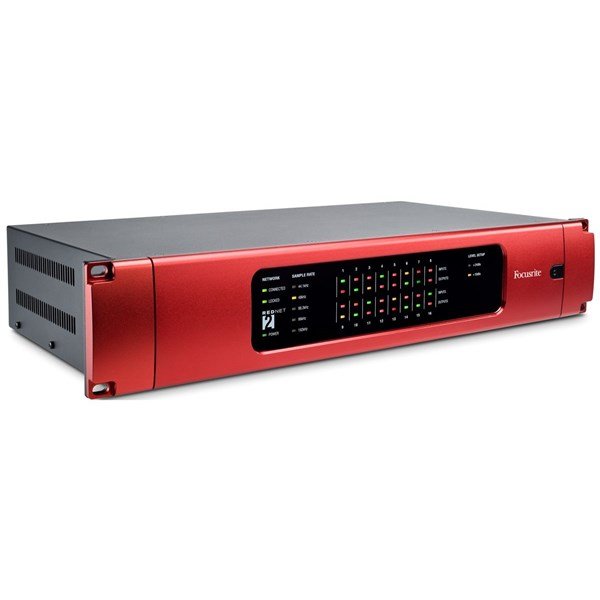

Focusrite RedNet 2 16 Kanal A-D/D-A Dönüştürücü + Ses Arabirimi
Focusrite RedNet 2 16 Kanal A-D/D-A Dönüştürücü + Ses Arabirimi
|
Inputs |
||
|
Analogue line inputs |
16 |
|
|
Connector |
25-way female Dsub x 2, wired to AES 59 |
|
|
0 dBFS reference levels |
+18 or +24 dBu (switchable) |
|
|
Frequency response |
20 Hz – 20 kHz ±0.05 dB |
|
|
THD+N |
< 0.001% unweighted; -1 dBFS input, 20 Hz – 22 kHz |
|
|
Dynamic range |
119 dB ‘A’-weighted (-60 dBFS method) |
|
|
Converter dynamic range |
120 dB |
|
|
Signal-to-noise ratio |
119 dB ‘A’-weighted; 20 Hz – 20 kHz |
|
| Outputs | ||
|
Analogue line outputs |
16 |
|
|
Connector |
25-way female Dsub x 2, wired to AES 59 |
|
|
0 dBFS reference levels |
+18 or +24 dBu (switchable) |
|
|
Frequency response |
20 Hz – 20 kHz ±0.15 dB |
|
|
THD+N |
< 0.001% unweighted; -1 dBFS input, 20 Hz – 22 kHz |
|
|
Dynamic Range |
119 dB ‘A’-weighted (-60 dBFS method) |
|
|
Converter dynamic range |
120 dB |
|
|
Signal-to-noise ratio |
119 dB ‘A’-weighted; 20 Hz – 20 kHz |
|
|
Crosstalk |
||
|
Input or Output to Input |
< -90 dB (all other channels at 0 dBFS) |
|
|
Input or Output to Output |
< -100 dB (all other channels at 0 dBFS) |
|
|
Digital Performance |
||
|
Supported sample rates |
44.1 / 48 / 88.2 / 96 / 192 kHz |
|
|
Clock sources |
Internal or from network master device |
|
|
Power |
||
|
PSU |
Internal, Universal type, consumption 30 VA |
|
|

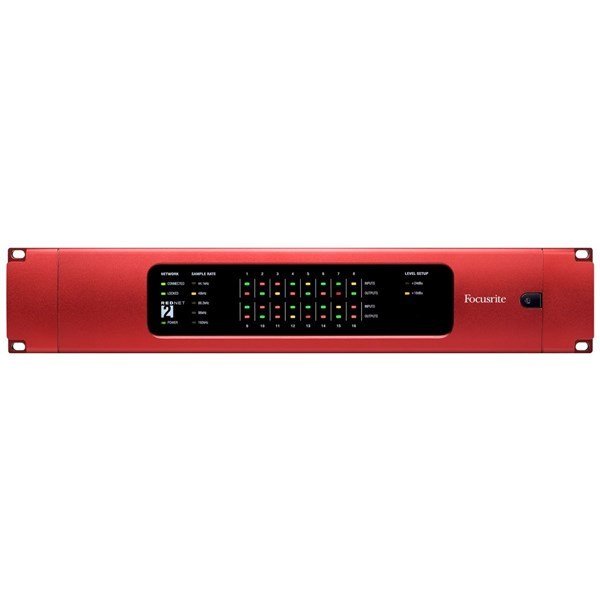

Front Panel Indicators |
||
|
Power |
Green |
|
|
Network connected |
Green |
|
|
Sync lock |
Green |
|
|
Sample rate |
Yellow x 5 |
|
|
Input/Output range |
Yellow x 2 |
|
|
Input/Output signal level |
Bi-colour x 32 (Green = -42 dBFS; Orange = -6 dBFS; Red = overload) |
|
