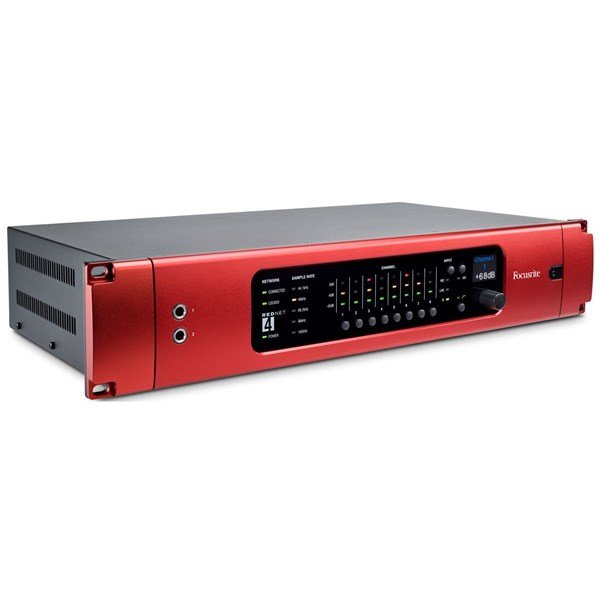

Focusrite RedNet 4 Uzantan Kumandalı 8 Kanal Mikrofon Preamp ve A-D Seskartı
Focusrite RedNet 4 Uzantan Kumandalı 8 Kanal Mikrofon Preamp ve A-D Seskartı
|
Microphone Inputs |
|
|
Gain range |
0 dB; 8 to 63 dB in 1 dB steps |
|
Type |
Electronically balanced, Zin = 2.4 kohms |
|
Max. input level |
+16 ±0.5 dB; min. gain for 0 dBFS, Rs = 150 ohms, pad out |
|
Min. input level |
-47 ±0.5 dB; max. gain for 0 dBFS, Rs = 150 ohms, pad out |
|
Frequency response |
20 Hz – 55 kHz ±0.1 dB (-3 dB @ 80 kHz, fs = 192 kHz); Rs = 150 ohms |
|
THD+N |
< 0.0007% @ -1 dBFS; +15 dBu input, Rs = 150 ohms, 20 Hz – 22 kHz |
|
Noise |
EIN -128 dB; 60 dB gain, Rs = 150 ohms, 20 Hz – 22 kHz |
|
Phantom power |
48 V, independently switchable per-channel |
|
Signal-to-noise ratio |
119 dB ‘A’-weighted; Rs = 150 ohms |
|
Line Inputs |
|
|
Gain range |
-12 to 42 dB in 1 dB steps |
|
Max. input level |
+24 ±0.5 dB; min. gain for 0 dBFS |
|
Min. input level |
-30 ±0.5 dB; max. gain for 0 dBFS |
|
Frequency response |
20 Hz – 20 kHz ±0.1 dB |
|
THD+N |
﹤ 0.003% @ -1 dBFS; +23 dBu input, min.gain, 20 Hz – 22 kHz |
|
Signal-to-noise ratio |
117 dB ‘A’-weighted |
|
Instrument Inputs (Inputs 1 & 2 only) |
|
|
Gain range |
+14 to 68 dB in 1 dB steps |
|
Max. input level |
+10 ±0.5 dB; min. gain for 0 dBFS |
|
Min. input level |
-44 ±0.5 dB; max. gain for 0 dBFS, pad out |
|
Frequency response |
20 Hz – 20 kHz ±0.1 dB |
|
THD+N |
﹤ 0.001% @ -1 dBFS; +9 dBu input, min.gain, 20 Hz – 22 kHz |
|
Signal-to-noise ratio |
112 dB ‘A’-weighted |
|
Analogue High-Pass Filters |
|
|
Selection |
Independently switchable per-channel |
|
Frequency/slope |
-6 dB @ 65 ±3 Hz, 12 dB/octave |
|
Crosstalk |
|
|
Input to input |
﹤-80 dB (all other channels at 0 dBFS) |
|
Digital Performance |
|
|
Supported sample rates |
44.1 / 48 / 88.2 / 96 / 192 kHz |
|
Clock sources |
Internal or from network master device |
|
Power |
|
|
PSU |
Internal, Universal type, consumption 30 VA |
|

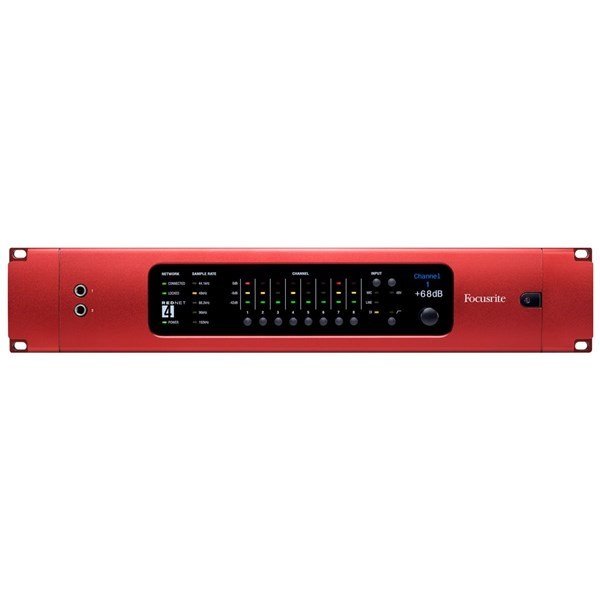

Front Panel Indicators |
|
|
Power |
Green |
|
Network connected |
Green |
|
Sync lock |
Green |
|
Sample rate |
Yellow x 5 |
|
Channel 1/2 source |
Yellow x 3 (mic/line/inst) |
|
Signal level |
Green x 8 (-42 dBFS); Yellow x 8 (-6 dBFS); Red x 8 (overload) |
|
Channel select buttons |
8 |
|
Channel function controls |
Input source, HPF, phantom power, Gain encoder |
|
Channel display |
Colour OLED; channel number, input source, gain |
