Digital Performance
|
A-D Dynamic Range |
109 dB A-weighted (all inputs) |
|
D-A Dynamic Range |
106 dB A-weighted (line outputs 1-2) 108 dB A-weighted (line outputs 3-4) |
|
Supported sample rates |
44.1 kHz, 48 kHz, 88.2 kHz A 96 kHz |
|
Clock jitter |
<250 ps |
Microphone Inputs
|
Frequency Response |
20 Hz ± 0.5 dB, 20 kHz ± 0.1 dB (min. gain) |
|
THD+N |
-96 dB (1 kHz, –1dBFS, 20 kHz BW) |
|
Noise EIN |
–122 dBu CCIR-RMS (measured at 60 dB of gain with 150 ohm termination) |
|
Maximum input level |
+9 dBu (without pad) |
Line Inputs (Front Panel)
|
Frequency Response |
20 Hz ± 0.5 dB, 20 kHz ± 0.1 dB (min. gain) |
|
THD+N |
-80 dB (1 kHz, –1dBFS, 20 kHz BW) |
|
Noise (NiPoS) |
–105 dBFS CCIR-RMS (measured at min. gain with 50 ohm termination) |
|
Maximum input level |
>+28 dBu |

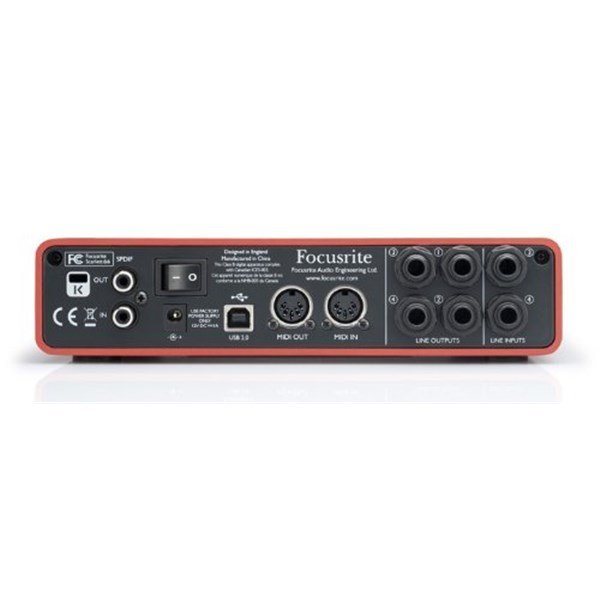

Line Inputs (Rear Panel)
|
Frequency Response |
20 Hz ± 0.5 dB, 20 kHz ± 0.1 dB (min. gain) |
|
THD+N |
–82dB (1 kHz, –1dBFS, 20 kHz BW) |
|
Noise (NiPoS) |
107dBFS CCIR-RMS (measured at min. gain with 50 ohm termination) |
|
Maximum input level |
+16dBu |
Instrument Inputs
|
Frequency Response |
20 Hz ± 0.3 dB, 20 kHz ± 0.1 dB (min. gain) |
|
Noise EIN |
–103 dBFS CCIR-RMS (measured at min. gain) |
|
Maximum input level |
+8 dBu (without pad) |
Line Outputs 1 & 2
|
Maximum Output Level (0 dBFS) |
+11 dBu, balanced |
|
THD+N |
-100 dB (1 kHz, –1dBFS, 20 kHz BW) |
