Inter-M MA-224 U 5-Bölge, 240W, 6 Giriş, Usb/Mp3 Oynatıcı Mikser Amfi
inter-M MA-224 U 5-Bölge, 240W, 6 Giriş, Usb/Mp3 Oynatıcı Mikser Amfi

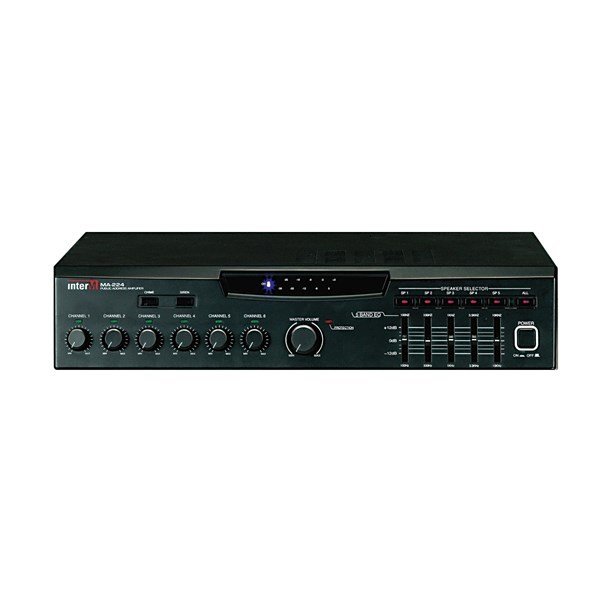

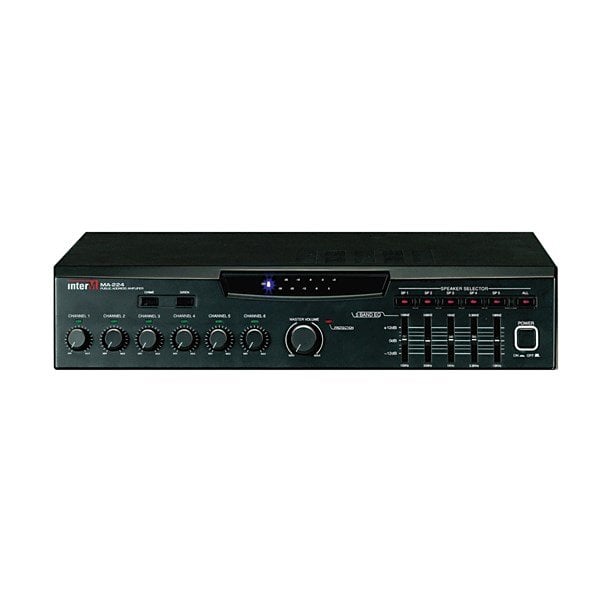

Inter-M's MA-224 U is a 6-input 240-watt mixer/amplifier with a built in digital portable media player that will playback MP3/WMA/WAV audio files. The MA-U series offers input flexibility with its 6 flexible microphone and line level selectable inputs.
Input options include 5 selectable microphone or line level, a telephone and a dual RCA sum-to-mono. The A front panel 1/8" mini-jack makes it easy to plug-in a portable music source.
The MA-212U series uses a Class D amplifier topology combined with a SMPS, Switch mode power supply, for added energy efficiency in a compact size.
The MA-212U series mixer-amplifiers provide outstanding value and functionality for installed sound applications in a wide variety of commercial installations including: Education, Fitness Centers, Retail, Restaurants, dance studios, and BGM.
Inter-M MA-224U Features:
Built in MP3 / WMA / WAV player. Audio files are accessible via the front panel USB connector
SMPS – Switch Mode power supply technology design delivers high power output with low-power consumption and low weight
6 input mixer amplifier with 5 microphone or line level selection (line-level input, mic level input, and phantom power)
Signal indicator confirms and displays signal present for each input
5-Band Equalizer for precision tone adjustment
Five zone speaker selector switch, allows for independent or all-zone broadcast
Front panel CHIME and SIREN with external trigger
External MUTE and Telephone paging input
VCA remote master volume level control
10 segment LED level indicator
Inter-M MA-212U Specifications:
Rated Output (RMS): 240W
Frequency Response (SP OUT/1W output): 80Hz - 15kHz
Total harmonic Distortion (T.H.D @ Rated output, 1kHz): Less than 0.5%
Signal to Noise Ratio (S/N @ Rated output): Better than -78dB
GRAPHIC EQUALIZER (100Hz,330Hz,1kHz,3.3kHz,10kHz): ±12dB
Input sensitivity / Impedance
INPUT: 1~5 MIC -50dBu / 2kOhms
LINE:-10dBu / 2kOhms
INPUT: 6 -10dBu / 10kOhms
TEL IN: 0dBu / 10kOhms
EXTIN: 0dBu / 20kOhms
AMP IN: 0dBu / 47kOhms
MIX OUT / Impedance:0dBu / 10kOhms
Speaker Out /Impedance
LOW-Z:22V / 4Ohm
HIGH-Z: 100V / 83Ohm
Power Source: 100–240VAC, 50/60Hz
Power Consumption (1/8W output): 50W
Weight (SET): 6.7kg/14.8lb
Dimension (SET): 16.5" W x 3.5"H x 12.9" D
