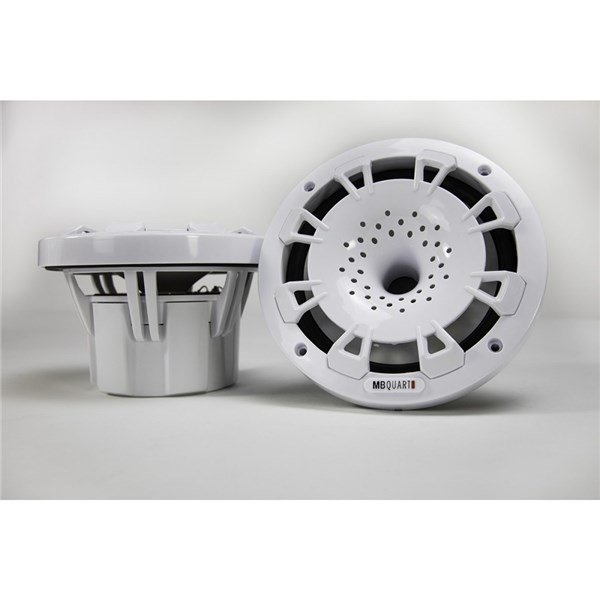

Mb Quart NH1-116 W Marine Hoparlör (Takım-Beyaz)
Mb Quart NH1-116 W Marine Hoparlör (Takım-Beyaz)
CERTIFICATIONS : IPX67, Conformal Coated, UVA Certified, CEA426B
POWER HANDLING (CEA426B) : 75 watts / (CEA426B) : 150 watts
IMPEDANCE : 4 ohm
FREQUENCY RESPONSE +/- 10DB : 30 Hz - 24kHz
SENSITIVITY (1 WATT/1 METER) : 92 dB
MOUNTING DIAMETER / CUT OUT : 5.59" (141.9mm)
OUTSIDE DIAMETER : 6.8" (174.5 mm)
MOUNTING DEPTH/CHASSIS DEPTH :3" (76.6 mm)
MARINE GRADE PROTECTION:LIFE SHIELD
Protected for water and dirt. UV protected against sun fade.
TWEETER DOME MATERIAL:1 Inch Pure Titanium Compression Diaphram
Very smooth musical response, with very high output with minimal required amplifier power
COMPRESSION HORN:Coincident Mounted Compression Horn
Overall volume is improved as much as +5dB over conventional speakers, Wavelength Transparent Acoustic Lens improves midrange frequencies through the cone
SURROUND:Natural Butyl Rubber
Remains musical in all weather. Does not stiffen in cold.
CONE:6.5 inch Composite Poly Midrange
Water resistant composite polypropylene cone with temperature stable Butyl rubber surround mounted on a lightweight composite frame
VOICE COIL FORMER:High Temperature Voice Coil and Former
Voice coil is high temperature copper, wound on a Kapton former which allows the voice coil to handle more power while remaining light in weight.
COOLING SYSTEM:Front and Rear Venting
Air passes through the spider and back plate to exchange air over the voice coil.
MARINE CERTIFIED:Longer life against harsh conditions. Protected against sun fade with UVA paint coating. Conformal coated crossover components protect against fresh and salt water spray as well as dust and sand.
TWEETER MATERIAL:Titanium Dome Tweeter
Very smooth musical response, high output with minimal required amplifier power
MARINE CERTIFIED CROSSOVER:Marine Certified Crossover
Conformal Coated, Butterworth 12dB per octave crossover with PTC (Positive Thermal Coefficient) tweeter protection.
