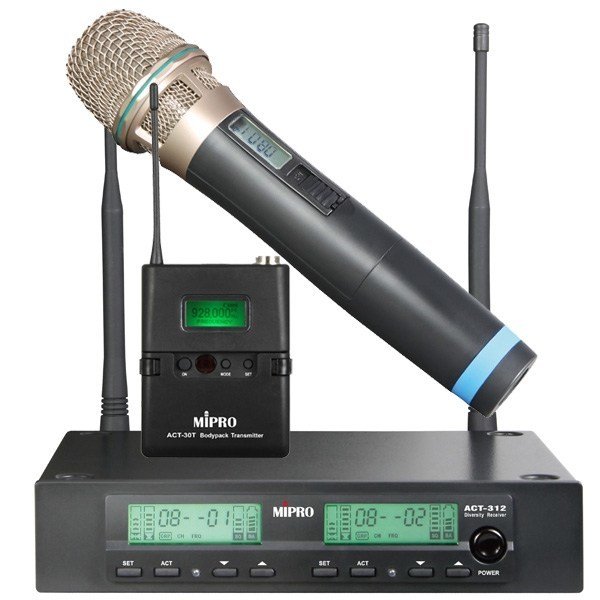

Mipro ACT 312 El +Yaka Tipi Kablosuz Mikrofon Seti

Channel

Dual

Chassis

EIA-Standard 19" 1/2U

Receiving Mode

Diversity

Frequency Range

UHF480~934MHz

Antenna

Rear Panel. Detachable.

Preset Channels

112 preset channels.
Group 1-6: 8 compatible channels in each group.
Group 7-10: 16 compatible channels in each group.
Group 11: Up to 8 channels can be saved & recalled.
961 user-defined frequencies in group 11.

Oscillation Mode

PLL Synthesized, Frequency Stability≦±0.005% (-10~+60℃)

Sensitivity

10dBμV, at S/N>80dB

S/N Ratio

>106dB(A)

T.H.D.

<0.5% @ 1kHz

Frequency Response

50Hz~18kHz, with high pass filter.

Squelch

"PiloTone & NoiseLock" dual-squelch circuit.

Audio Output Adjustment

Output level accurately pre-adjusted to equal to the microphone capsule sensitivity.

Maximum Output Level

2-level Switch:Line & Mic

Power Supply

External AC Adapter, 12~15V DC, 1A

Dimensions

210(W)×44(H)×180(D)mm / 8.3(W)x1.7(H)x7.1(D)"

Weight

Approx. 0.95kg / 2.1lbs

Note

Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.

Housing

Rugged Plastic

Frequency Range

UHF480~934MHz

Bandwidth

24MHz

Oscillation Mode

PLL Synthesized

Channel Set-Up

ACT Sync

LCD Display

LCD displays working band-code, group, channel, frequency, AF input gain, RF output power, mute & lock status, battery status and error codes.

RF Output Power

10mW / 50mW (switchable)

Spurious Emissions

<-55dBc

Max. Input Level

0dBV

Mute Connector

Optional MJ-70 remote mute switch

Battery

2 AA alkaline

Dimensions

63(W)×82(H)x22(D)mm / 2.5(W)x3.2(H)x0.9(D)"

Weight

Approx. 81g / 2.9oz (excluding batteries)

Patents & Approvals

Patented. Telecom and safety regulations approved.

Note

Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.

Built-in Volume Control

N/A

Housing

Rugged Plastic

Oscillation Mode

PLL Synthesized

Frequency Range

UHF480~934MHz

Bandwidth

24MHz

Channel Set-Up

ACT Sync

RF Output Power

10~30mW (country dependent)

Spurious Emissions

<-55dBc

Max. Input Level

140dB SPL

Display

LCD displays group, channel, battery status & error codes.

Battery

2 AA alkaline

Dimensions

50(Ø)×233(L)mm / 2.0(Ø)x9.2(L)"

Weight

Approx. 246g / 8.68oz (excluding batteries)

Patents & Approvals

Patented. Telecom and safety regulations approved.

Note

Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.
