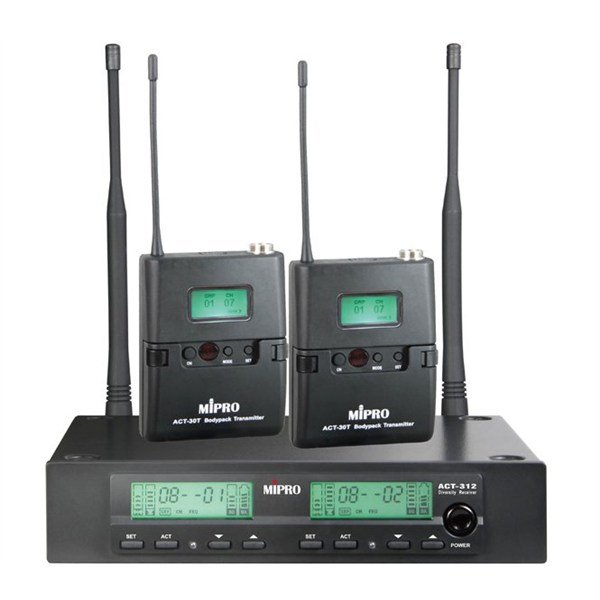

Mipro ACT 312 Yaka - Çift Yaka Tipi Kablosuz Mikrofon Seti

Channel

Dual

Chassis

EIA-Standard 19" 1/2U

Receiving Mode

Diversity

Frequency Range

UHF480~934MHz

Antenna

Rear Panel. Detachable.

Preset Channels

112 preset channels.
Group 1-6: 8 compatible channels in each group.
Group 7-10: 16 compatible channels in each group.
Group 11: Up to 8 channels can be saved & recalled.
961 user-defined frequencies in group 11.

Oscillation Mode

PLL Synthesized, Frequency Stability≦±0.005% (-10~+60℃)

Sensitivity

10dBμV, at S/N>80dB

S/N Ratio

>106dB(A)

T.H.D.

<0.5% @ 1kHz

Frequency Response

50Hz~18kHz, with high pass filter.

Squelch

"PiloTone & NoiseLock" dual-squelch circuit.

Audio Output Adjustment

Output level accurately pre-adjusted to equal to the microphone capsule sensitivity.

Maximum Output Level

2-level Switch:Line & Mic

Power Supply

External AC Adapter, 12~15V DC, 1A

Dimensions

210(W)×44(H)×180(D)mm / 8.3(W)x1.7(H)x7.1(D)"

Weight

Approx. 0.95kg / 2.1lbs

Note

Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.

Housing

Rugged Plastic

Frequency Range

UHF480~934MHz

Bandwidth

24MHz

Oscillation Mode

PLL Synthesized

Channel Set-Up

ACT Sync

LCD Display

LCD displays working band-code, group, channel, frequency, AF input gain, RF output power, mute & lock status, battery status and error codes.

RF Output Power

10mW / 50mW (switchable)

Spurious Emissions

<-55dBc

Max. Input Level

0dBV

Mute Connector

Optional MJ-70 remote mute switch

Battery

2 AA alkaline

Dimensions

63(W)×82(H)x22(D)mm / 2.5(W)x3.2(H)x0.9(D)"

Weight

Approx. 81g / 2.9oz (excluding batteries)

Patents & Approvals

Patented. Telecom and safety regulations approved.

Note

Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.
