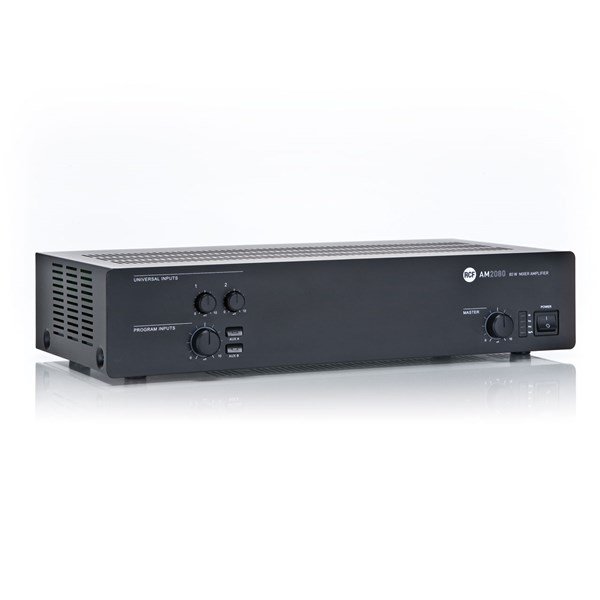

Rcf AM 2080 - 80W 100V/4 ohm Amfili Mikser
Full digital technology Mixer Amplifier 80 W RMS
100 V - 70 V and 4 Ohm outputs
2 universal inputs with phantom facility on screw terminal connections
XLR connector on input 1
RJ45 connectors on input 2 for connection to BM3001 microphone
Configurable Priority settings, VOX facility on input 1
Selectable aux inputs with two keys on the front panel for music source
Aux inputs with volume and tone controls
Music On Hold and PRE outputs
Digital Chime and Siren built-in generator
Power output:80W rms
Frequency Response:50Hz ÷18kHz
Distortion:< 0.3%
Signal/noise rate:(MIC) > 60 dB; (AUX) > 80dB
Crosstalk:(MIC) > 60 dB; (AUX) > 80dB
Phantom Power:30V dc
Input sensitivity MIC:- 62dBu
Input sensitivity PHANTOM:- 29dBu
Input sensitivity LINE:- 29 ÷ + 11dBu
Input sensitivity AUX:- 18 ÷ + 20dBu
Input impedance MIC:10kΩ
Input impedance PHANTOM:10kΩ
Input impedance LINE:10kΩ
Input impedance AUX:20kΩ
Bass Tone:(100 Hz) - 9 ÷ + 6dB
Treble Tone:(10 kHz) - 14 ÷ + 8dB
High-pass filter:150Hz
Output Level:– 1dBu
Output impedance:600Ω
Phantom power voltage/current:30 / 0.018V/A
Output Loudspeaker Low impedance:4Ω
Output Loudspeaker Constant voltage:100 V ; 70 V
AUX output:Pre ; Music on hold
Protections:Overload, thermal, Short circuit, fuse
Operating voltage:220÷240 / 110÷120 ~ 50 / 60V ˜ Hz
Power (consumption):160W
Fuse model:T1.6AL - 250 V ;T3.15AL - 250 V
Height:88 / 3.46mm/inch
Width:442 / 17.40mm/inch
Depth:230 / 9.05mm/inch
Net weight:3.8 / 8.37kg/lbs
Kutu Ölçüleri
Package height:200 / 7.87mm/inch
Package width:500 / 19.68mm/inch
Package depth:330 / 12.99mm/inch
Shipping weight:4.3 / 9.47kg/lbs
