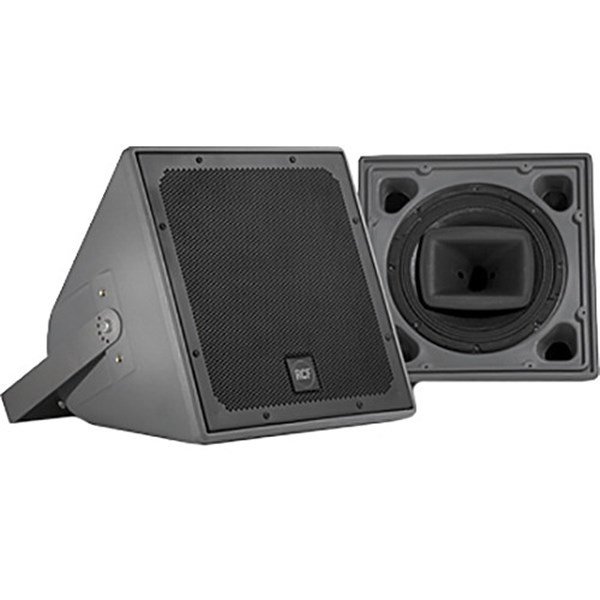

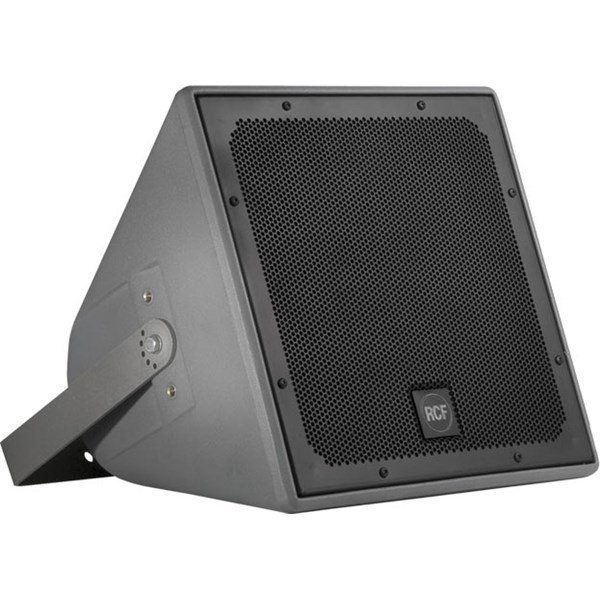

Rcf P2110-T - 10 inç 200W Coaxial Su Geçirmez Pasif Kabin
Rcf P 2110-T - 10 inç 200W Coaxial Su Geçirmez Pasif Kabin
- Cabinet is a single piece rotation molded in medium density polyethylene, fully UV protected and waterproof IP 55
- Front grille in custom perforated aluminum with open-cell fibers and water repellent woven fabric backing
- Stainless steel bracket
- One 10" high-output LF transducer with 2" voice coil
- One RCF precision 1" compression driver with 1.5" voice coil
- 40 x 90° constant directivity horn
- Built in passive crossover and selectable line transformer
- 10x20° enclosure sides for array configurations
- Active mosfet compression driver protection
- LICC (Low Impedance Compensated Crossover) network
- 12 Brass suspension points (M8)
Acoustical
Frequency Response 95 Hz - 20 kHz
Maximum SPL 124 dB @ 1 m
Coverage Angle Horizontal: 90°
Vertical: 40°
Directivity Index, Q: 11
Sensitivity 95 dB
Impedance 16 ohms
Power Handling 200 W
Peak Power Output 800 W
Recommended Amplifier Power 400 W
Protection Dynamic
Crossover Frequencies 2000 Hz
Transducers
Driver 1.0" (25.4 mm) HF diver, 1.5" (38.1 mm) voice coil
Woofer 10" (254 mm) woofer, 2.5" (63.5 mm) voice coil
Impedance Compression Driver: 8 ohms
Woofer: 16 ohms
Input Power Compression Driver: 25 W AES
Woofer: 180 W AES
Sensitivity Compression Driver: 106 dB
Woofer: 95 dB
Input
Input Connector 4 x 16.4' (5 m) Neoprene cable
Voltage Constant Voltage Transformer: 70/100
Power Selection: 70 V/ 30 W, 15 W; 100 V/ 60 W, 30 W
Cabinet / Accessories
Material Polyethylene roto-molded
Grille Custom perforated aluminum grille with open-cell fiber and water repellent woven fabric backing
Dimensions 13.78 x 13.78 x 12.60" (350 x 350 x 320 mm)
Weight 29.75 lb (13.50 kg)
