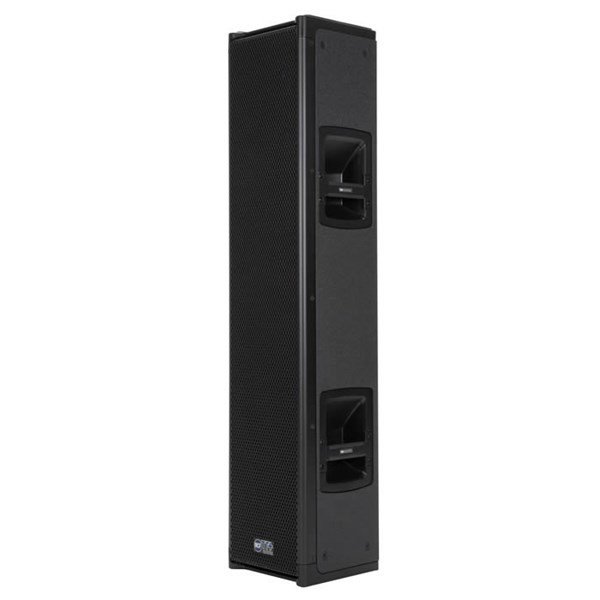

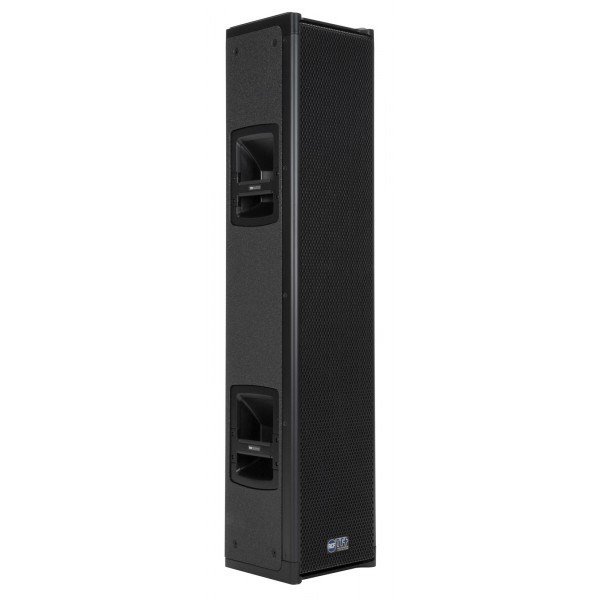

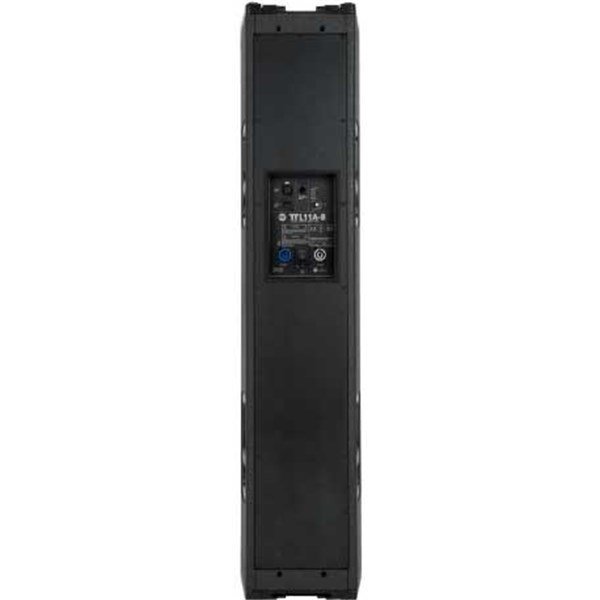

Rcf TTL11A-B Active Bass Module 4x8 inç 2000W
Rcf TTL11A-B Active Bass Module 4x8 inç 2000W
Features:
2x 1000W
4 x 8" neo woofers, 2.5" v.c.
96 Khz, 32 bit DSP processing
Digital steering down to -10°
1° step steering control
Beam forming, time delay controls
The TTL11A represents a state of the art execution ofa DSP controlled multi-way digital amplification.
XLR input and XLR output for daisy chaining.
Acoustical Specifications:
Frequency Response -3 dB: 60 Hz ÷ 20 kHz
Max SPL: 136 dB
Horizontal coverage angle: 90°
Vertical coverage angle: 10° to 40°
Woofer: 4 x 8" neodymium woofers, 2.5" voice coil
Input/Output Section:
Input signal: Balanced/unbalanced
Input connectors: XLR, RDNet ready
Output connectors: XLR, RDNet ready
Input sensitivity: -2 dBu / + 10 dBu
Processor Section:
Crossover frequencies: 350 Hz - 1300 Hz
Protections: Thermal , excurs., rms
Limiter: Soft limiter
Controls: DSP controlled
Amplifier Specifications:
Low frequencies: 2 x 1000 W
Cooling: Convection
Connections: Powercon in/out
Cabinet:
Cabinet Material: Baltic birch
Hardware: Multi-functional
Handles: 4 on side, Top, Bottom
Color: Black
Physical Specifications:
Dimensions: 94.33" H x 10.27" W x 9.52" D (2396 x 261x 242 mm)
Net Weight: 167.55 lbs (76 kg)
