TC Electronic AFTERGLOW CHORUS Efekt Pedalı
TC Electronic AFTERGLOW CHORUS Efekt Pedalı
Time-Honoured Modulation
The Afterglow Chorus features an all-analogue circuit with a built-in bucket-brigade device. This innovative circuitry provides you with a full host of classic modulation tones with a perfect frequency. Players can benefit from tones such as a 1980s chorus, to a grunge tone at the turn of a dial. Controlling this pedal is simple thanks to its three-knob layout including options for Rate, Depth and Mix. Rate controls the speed of modulation, Depth controls how pronounced the effect is, whilst Mix controls the ratio of unaffected and affected signal.
Compact & Gig Worthy Design
Along with its incredible tonal capabilities, the Afterglow Chorus Pedal features a durable metal chassis designed to protect the internal components against moisture and the day-to-day life of a gigging musician. The pedal is also equipped with top mounted jack ports, maximising pedalboard space and allowing players to fit more pedals on their rig. Each control knob is designed with rugged edges, allowing players to control the settings with their foot during performances, while the intuitive control layout offers a user-friendly operation perfect for beginners.
Features
Vintage-style chorus pedal for electric guitar
All-analogue bucket-brigade circuit provides optimum frequency
Three-dimensional modulation tones for the ultimate tone
Easy-to-use interface makes it ideal for beginners

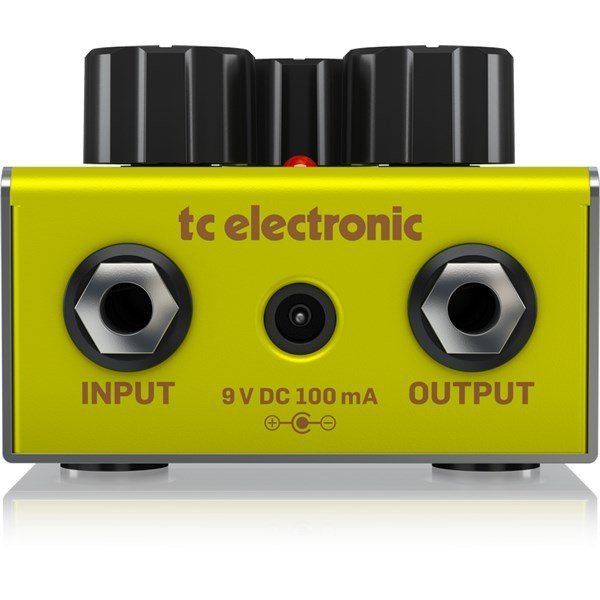

Top-mounted jacks maximises space on pedalboards
True bypass offers ultimate signal integrity
Compact, roadworthy ’’built-like-a-tank’’ metal chassis
Runs on 9 V battery or PSU-SB DC power supply (not included)
Specifications
General
Controls: Rate, Depth, Mix
Input: 1/4" TS, Unbalanced
Input Impedance: More than 450 K Ohms
Output: 1/4" TS, Unbalanced
Output Impedance: 1 K Ohm
Power Input: Standard 9 V DC, centre negative, more than 100 mA
Battery Option: Internal 9 V battery connector
Current Consumption: Less than 20 mA
Dimensions
Height: 58 mm
Width: 74 mm
Depth: 132 mm
Weight: 0.5kg
