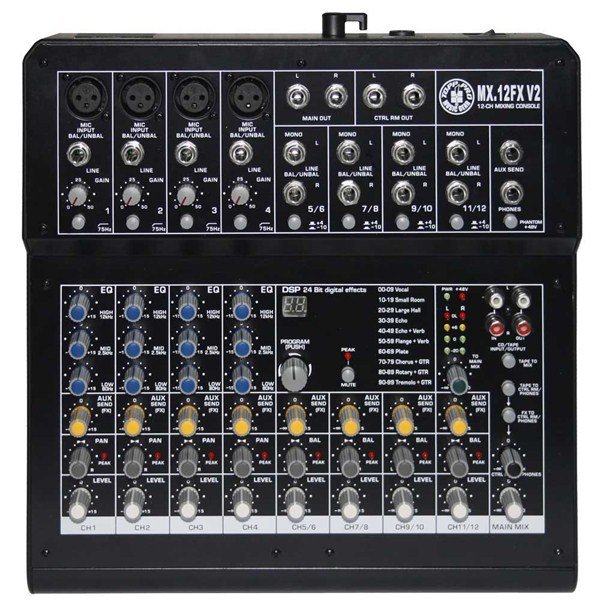

Topp Pro MX 12 FX V2 12 Kanal Efekli Deck Mikser
Topp Pro MX 12 FX V2 12 Kanal Efekli Deck Mikser
Model MX.12FX V2
Frequency Response
Mic Input to any Output
(Gain @ 0 dB, Rated output level) 20 Hz to 50 kHz(0, -1dB)
20 Hz to 130 kHz(0, -3dB)
Distortion (THD&N)
Mic Input to MAIN Output(Gain @ 0 dB,
Rated output level @ 20 Hz-20 kHz bandwidth) 0.003%(A-weighted)
MIC EIN (Equivalent Input Noise)
Input: Channel INPUT MIC
(Rs = 150 Ohm ,Gain @ Max.,20 Hz-20 kHz bandwidth) 119dBu (A-weighted)
Input Gain Control Range (20 Hz-20 kHz bandwidth)
Mono Channel MIC: 0 to 48dB, LINE: -33 to +15dB
Stereo Channel LINE: -8 to +6dB
Attenuation (Crosstalk) (20 Hz-20 kHz bandwidth)
Line in, 1/4" TRS Main Out,1 kHz relative to 0 dBu, 22 Hz ~ 22 kHz Filter,Gain @ unity
Main Mix knob/fader @ -8 -87dBu(A-weighted)
Channel Level knob/fader @ -8 -85dBu(A-weighted)
Rated Output Level
Main, Aux, Control Room output
(all knob/fader @ 0 dBu,1 kHz) 0dBu
Maximum Output Level
Main, Aux, Control Room output(all knob/fader
@ 0 dBu,1 kHz, 22 Hz 22 kHz Filter,THD @ 1%) +20dBu
Maximum Voltage Gain (EQ and PAN/BAL knob @ 0 dB, Other all knob or fader @ max, DFX mute,1 kHz, Rs=600 Ohm)
Mono Channel MIC INPUTMAIN OUT (1/4" TRS Unbalanced) 74dBu
Mono Channel MIC INPUTPHONES (1/4" TRS Stereo) 84dBu
Mono Channel MIC INPUTAUX SEND (1/4" TRS Unbalanced) 79dBu
Mono Channel MIC INPUT TAPE OUT (RCA) 74dBu
Mono Channel LINE INPUT MAIN OUT (1/4" TRS Unbalanced) 59dBu
Stereo Channel LINE INPUT MAIN OUT (1/4" TRS Unbalanced) 33dBu
TAPE INPUT MAIN OUT (1/4" TRS Unbalanced) 10dBu
Main mix Noise (20 Hz-20 kHz bandwidth)
MAIN OUT (all knob/fader @ 0 dBu,22 Hz 22 kHz Filter,Gain @ unity)
Main Mix knob/fader @ -8 -106dBu (A-weighted)
Channel Level knob/fader @ -8
Main Mix knob/fader @ 0dB -95dBu (A-weighted)
Channel Level knob/fader @ -
Main Mix knob/fader @ 0dB -93dBu (A-weighted)
Channel Level knob/fader @ 0dB
Input HPF
Channel 1-4 75Hz, 18 dB/oct
Equalization (Mono channels)
High +/-15 dB @12 kHz
Mid +/-12 dB @2.5 kHz
Low +/-15 dB @80 Hz
Internal Digital Effect
Presets 100
Controls 100-Position PRESET Selector and Mute Switch
Display Two 7-segment display and Mute/Peak LED Indicator
Type of effects VOCAL,SMALL ROOM, LARGE HALL, ECHO, ECHO+VERB, FLANGE+VERB, PLATE, CHORUS+GTR,ROTARY+GTR, TREMOLO+GTR
PEAK Indicator
Channel 1-12 +17dBu
Digital Effect(AUX send) +11dBu
VU Meters +20dBu
VU Meters
Main Left and Right (4-segment) Clip (+20), +6, 0, -20 (0 LED=0 dBu)
Impedance
Microphone Input 2.6k Ohms
Line Input 10k Ohms
CD/Tape Input 22k Ohms
Main Outputs 120 Ohms
Ctrl Room, Aux Sends 120 Ohms
Tape Output 1K Ohms
Phones Outputs 25 Ohms
Phantom power
Mic Pin2/Pin3 And Pin1(XLR-3-31 type balanced1=GND,2=HOT,3=COLD) +48V
Power supply
Adaptor AC 18V, 1000mA
Power Consumption 18W
Physical
Dimension (L*W*H) 271*259*54.3mm
Weight Net:1.9kg
