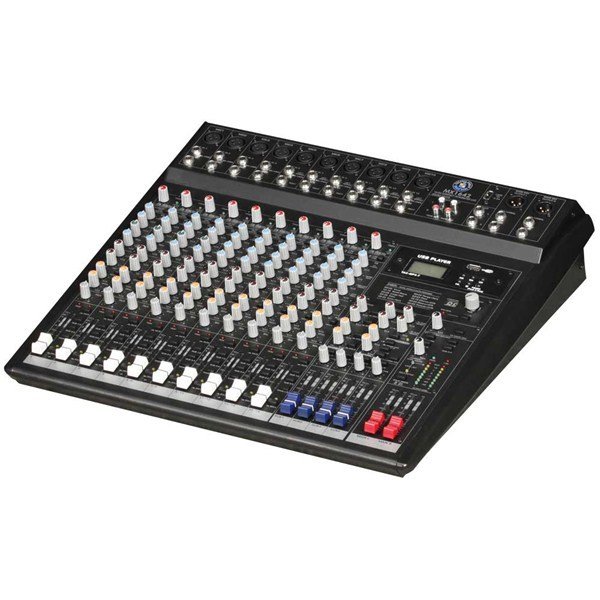

Topp Pro MX1642 EQ + DSP 16 Kanal Deck Mikser
Topp Pro MX1642 EQ + DSP 16 Kanal Deck Mikser
Model MX.1642
Mono Input Channels 10 Hz to 55 kHz, ±3 dB
Microphone Input 0.005% at +4 dBu, 1 kHz
Frequency Response 0 dB to 50 dB (MIC)
Distortion (THD & N) 115 dB
Gain Range Electronically balanced
SNR (Signal to Noise Ratio) 10 Hz to 55 kHz, ±3 dB
Line Input 0.005% at +4 dBu, 1 kHz
Frequency Response +15 dBu to -35 dBu
Distortion (THD & N)
Sensitivity Range Balanced/Unbalanced
Stereo Input Channels 10 Hz to 55 kHz, ±3 dB
Line Input 0.005% at +4 dBu, 1 kHz
Frequency Response
Distortion (THD & N) 1.4 kOhm
Impedances 2.5 kOhm
Microphone Input 10 kOhm or greater
Channel Insert Return 1 kOhm
All Other Inputs 120 Ohm
Tape Out
All Other Output ±15 dB @12 kHz
Equalization ±15 dB -frequency range 100 Hz~8 kHz
Hi-shelving ±15 dB @ 3 kHz
Mid bell (Mono) ±15 dB @ 500 Hz
Hi-Mid (Stereo) ±15 dB @ 80 Hz
Mid-Low (Stereo) 75 Hz, 18 dB/Oct.
Low-shelving ±15 dB @ 80 Hz
Low Cut Filter Fader 0 dB, Channels Muted: -100 dBr (ref.: +4 dBu)
Main Mix Section
Noise (Bus Noise) Fader 0 dB, all input channels assigned and set to UNITY Gain: -90 dBr (ref.:+4 dBu)
Max Output
+22 dBu Balanced XLR
+22 dBu Unbalanced, 1/4" jacks
AUX Returns Gain Range 8 to +15 dB
AUX Sends Max Out +22 dBu
Power Supply
Main Voltage
USA/Canada 100-120 VAC~60 Hz
Europe 210-240 VAC~ 50 Hz
U.K./Australia 240 VAC~ 50 Hz
Power Consumption 50 Watts
Fuse T1.25 AL
Main Connection Standard IEC Receptacle
Physical
Dimension (W D H) 470.5mm x 400mm x 38/115 mm (18.52" x 15.75" x 1.49"/4.53")
Net Weight 6.45 Kg (14.2 lb)
DSP Section
A/D & D/A Converters 24-Bit
DSP Resolution 24-Bit
Type of Effects
Echo, Echo+Verb, Tremolo, Plate, Leslie, Vocal, Rotary
Small Room, Flanger+Verb,Large Hall
Presets 100
Controls
100-Position PRESET Selector
DSP MUTE SWITCH with PEAK LED Indicator
