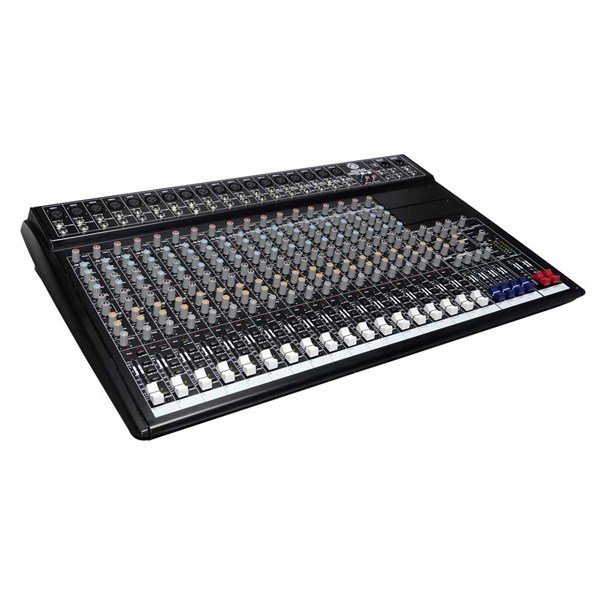

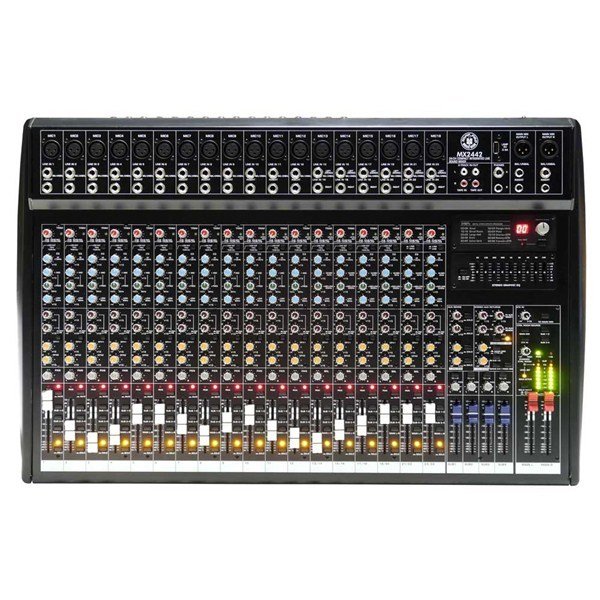

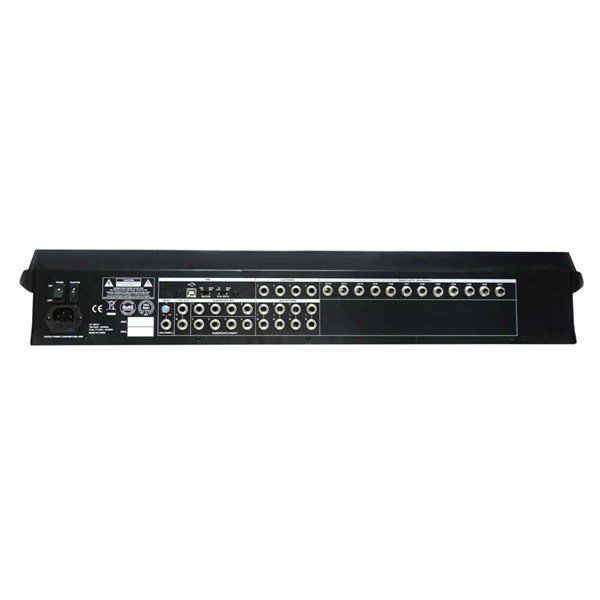

Topp Pro MX2442 EQ DSP 24 Kanal Profesyonel Deck Mikser

Topp Pro MX2442 EQ DSP 24 Kanal Profesyonel Deck Mikser

Model MX.2442 Pro Live Mixer
Mono Input Channels
Microphone Input Electronically balanced, discrete input configuration
Frequency Response 1 0 Hz to 55 kHz, +/-3 dB
Distortion (THO & N) 0.005% at+ 4 dBu, 1 kHz
Gain Range 0 dB to 50 dB (MIC)
SNR (Signal to Noise Ratio) 115 dB
Line Input Electronically balanced
Frequency Response 1 0 Hz to 55 kHz, +/-3 dB
Distortion (THO & N) 0.005% at +4 dBu, 1 kHz
Sensitivity Range +1 5 dBu to -35 dBu
Stereo Input Channels
Line Input Balanced/Unbalanced
Frequency Response 1 0 Hz to 55 kHz, +/-3 dB
Distortion (THO & N) 0.005% at +4 dBu, 1 kHz
Impedances
Microphone Input 1.4 kOhm
Channel Insert Return 2.5 kOhm
All Other Inputs 1 0 kOhm or greater
Tape Out 1 kOhm
All Other Output 120 Ohm
Equalization
Hi-shelving +/-15 dB @12kHz
Mid bell (Mono) +/-15 dB -frequency range 100 Hz-8 kHz
Hi-Mid (Stereo) +/-15 dB@ 3kHz
Mid-Low (Stereo) +/-15 dB@ 500Hz
Low-shelving +/-15 dB@ 80Hz
Low Cut Filter 75Hz, 18 dB/Oct.
Main Mix Section
Noise (Bus Noise) Fader 0 dB, Channels Muted: -100 dBr (ref.: + 4 dBu)
Fader 0 dB, all input channels assigned and set to UNilY Gain: - 90 dBr (ref.:+4 dBu)
Max Output +22 dBu Balanced XLR / +22 dBu Unbalanced, 1/4" jacks
AUX Returns Gain Range -oo to +15 dB
AUX Sends Max Out +22 dBu
Power Supply
Main Voltage
USA/Canada 100-120 VAC~60 Hz
Europe 210-240 VAC~ 50 Hz
U.K./Australia 240 VAC~ 50 Hz
Power Consumption 50 Watts
Fuse T1.25 AL
Main Connection Standard IEC Receptacle
Physical
Dimension (WxDxH) 470.5 mmx400 mmx38/115 mm (18.52"x15.75"x1.49"Y4.53")
Net Weight 6.45 Kg (14.2 lb)
DSP Section
AID & D/A Converters 24-Bit
DSP Resolution 24-Bit
Type of Effects Vocal, Small Room, Large Hall, Echo, Echo+VerbFiange+Verb,
Plate, Chorus+GTR, Rotary+GTR, Tremolo+GTR
Presets 100
Controls 100-Position PRESET Selector
DSP MUTE SWITCH with PEAK LED Indicator
