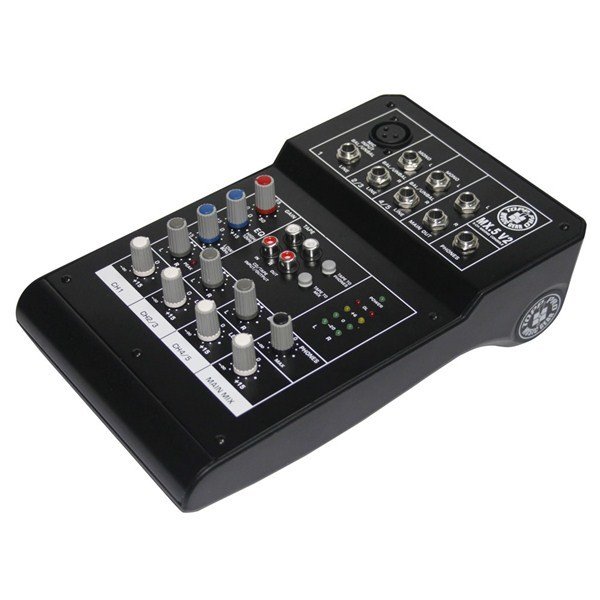

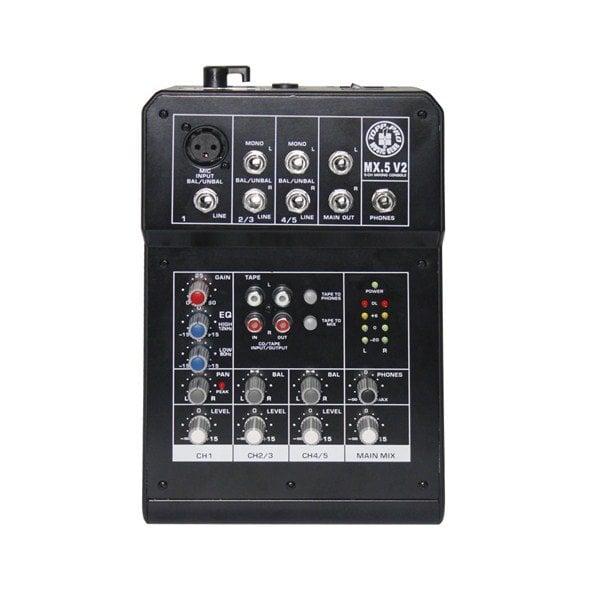

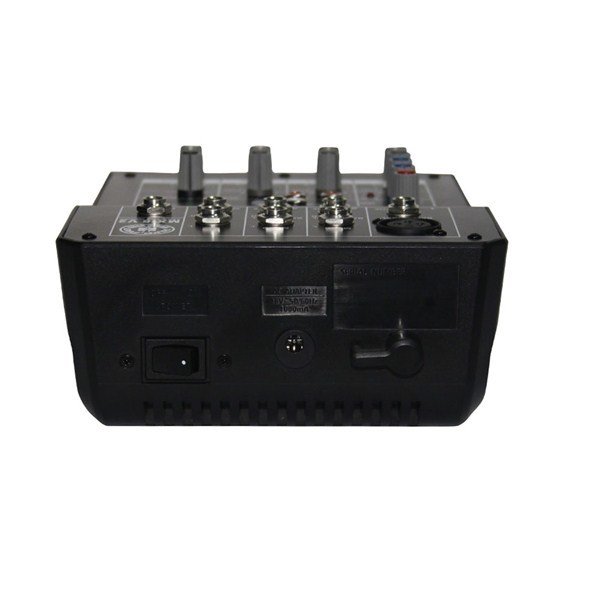

Topp Pro MX5 V2 5 Kanal Deck Mixer
Topp Pro MX5 V2 5 Kanal Deck Mixer
Frequency Response
Mic Input to any Output (Trim at 0 dB)
+0, -1 dB 10 Hz to 150 kHz
-3 dB 10 Hz to 200 kHz
Distortion
THD and SMPTE IMD 20 Hz to 20 kHz
Mic Input to Main Output <0.005% @+4 dBu output
Noise
20 Hz to 20 kHz BW (150 Ohm source impedance)
Equivalent Input Noise (EIN) -129 dBu
Residual Output Noise
Main, Ctrl Room, Phones -106 dBu
CMRR
Mic In 60 dB@1 kHz, Gain@ maximum
Crosstalk
Adjacent Inputs or Input to Output -90 dB@1 kHz
Input Gain Conrol Range 0 dB to 50 dB
Phantom Power +48 VDC
Equalization
High +/-15 dB@12 kHz
Mid (except for MX.5) +/-12 dB@2.5 kHz
Low +/-15 dB@80 Hz
Mixer Rated Output
Main, Aux, Control Room +4 dBu
Maximum Rated Output +22 dBu
Maximum Input Levels
Mic Input +12 dBu, Gain @+10 dB
Line Input +30 dBu, Gain @+10 dB
Tape Input and Aux Return +22 dBu
Input Impedance
Mic Input 2.6 kOhm , balanced
Line Input 20 kOhm , balanced
Stereo Aux Returns 20 kOhm , balanced
CD/Tape In 24 kOhm , unbalanced
Output Impedance
Main 240 Ohm , balanced; 120 Ohm, unbalanced
Ctrl Room, Aux Sends 120 Ohm
Tape Output 1 kOhm
Phones Output 25 Ohm
VU Meters
Main Left and Right (4-segment) Clip (+18), +6, 0, -20 (0 LED=0 dBu)
AC Power Requirements
External Power Supply Output 18.5 VAC 2@150 mA (3-pin AC power connection)
External Power Supply AC Input
U.S. 120 VAC, 60 Hz
Europe 240 VAC, 50 Hz
Japan 100 VAC, 50/60 Hz
Korea 220 VAC, 60 Hz
Physical
Dimensions (H x W x D)
MX.5 41 x 133 x 203 mm (1.6" x 5.2" x 8.0")
MX.6 203 x 133 x 41 mm (8.0" x 5.2" x 1.6")
MX.10 41 x 188 x 252 mm (1.6" x 7.4" x 9.9")
MX.12 41 x 272 x 259 mm (1.6" x 10.7" x 10.2")
Net Weight
MX.5/MX.6 0.7 Kg (1.6 lb)/1.2 Kg (2.7 lb)
MX.10/MX.12 1.4 Kg (3.1 lb)/1.8 Kg (3.9 lb)
