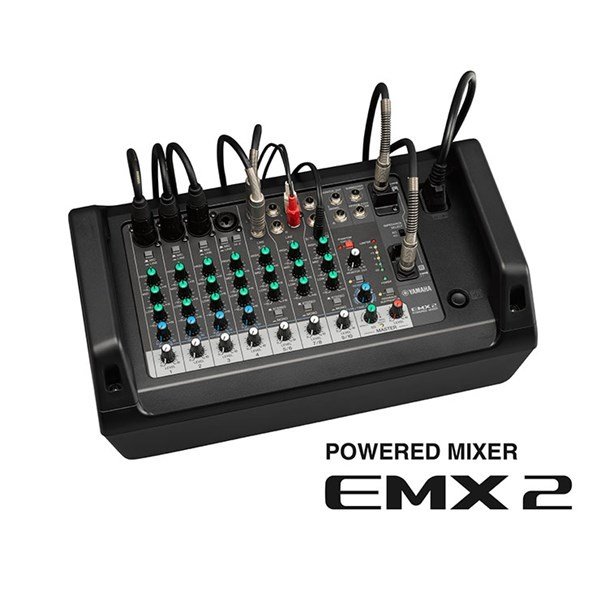

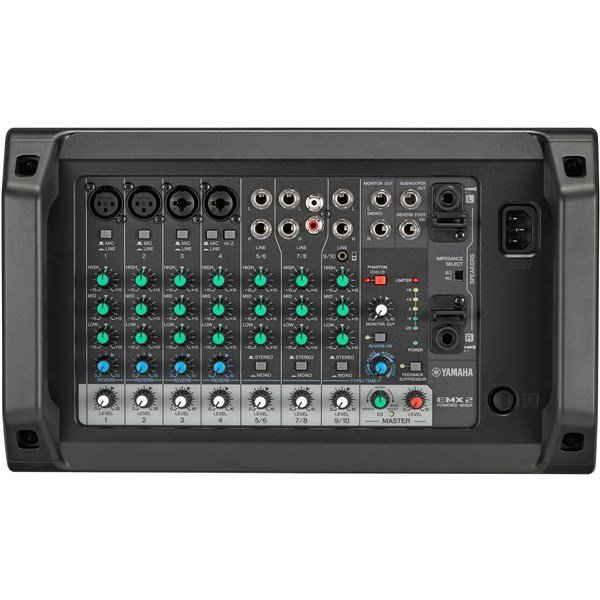

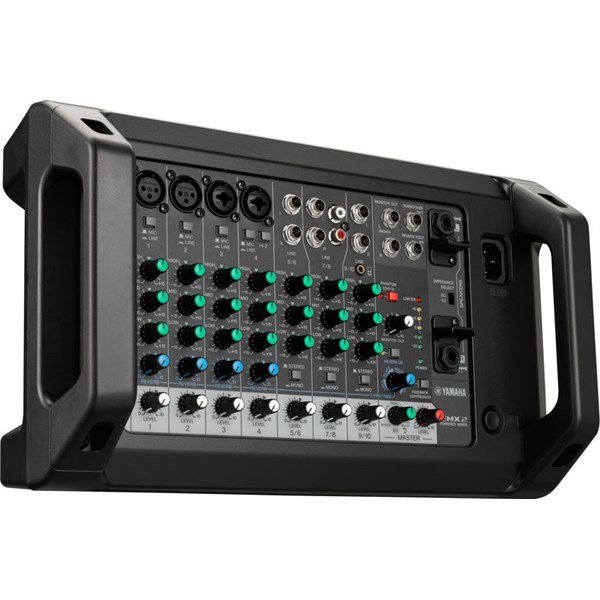

Yamaha EMX-2 10 Kanal 2x250 Watt Power Mikser

Yamaha EMX-2 10 Kanal 2x250 Watt Power Mikser

Small Size, Big Possibilities

There are many environments where having masses of equipment is not feasible or necessary. The EMX2’s small size and multiple functions means it is great for use in office spaces, chapels, karaoke nights and gigs. The four channels makes it ideal for microphones and there are two ¼’’ instrument cable inputs for versatility. The master EQ features the SPEECH setting, so you can tailor the sound to suit a speaking performance at the touch of a button. The AUX inputs mean you can play audio from an MP3 or computer, which is perfect for pubs and small venues.

A Good Performance Every Time

Yamaha have equipped the EMX2 with plenty of features to keep your performances dynamic. There are four types of reverb: Hall, Room, Plate, and Echo. These keep your sound atmospheric and textured, eliminating the need for extra equipment. The Feedback Suppressor is a one button solution to all the spontaneous feedback issues that occur at venues. The 1 knob EQ has specific settings designed for speech, music, and bass boosting. This supplies an easy and quick way of making your sound great.

Specifications

Dimensions:

Height:147 mm

Width:375 mm

Depth:220 mm

Weight:4.2 KG

Mains Power:AC 100-240V 50Hz/60Hz

Mono Inputs:4

Stereo Inputs:3

Outputs:Speakers [L, R] Monitor Out [L, R] Subwoofer Out

Bus:1 Stereo, 1 Effect

DSP Processor:SPX Algorithm Reverb 4 Programs, MASTER EQ (Speech to Music), Feedback Suppressor

Maximum Output Power at 4Ohms:1kHz THD+N less than 10 (CEA2006): 250 W + 250 W

Maximum Output Power at 8Ohms:1kHz THD+N less than 10 (CEA2006) : 170 W + 170 W

Input Channel Function:

Pad:26 dB (CH1-4)

Hi-Z:Supported (CH4)

EQ High:8kHz +15 dB / -15 dB

EQ Mid:2.5kHz +15 dB / -15 dB

EQ Low:100 Hz +15 dB / -15 dB

Frequency Response:

Input to Speakers:+1 dB/-4 dB (40Hz to 20kHz)

Input to Monitor Out:+0.5 dB/-1.5 dB (20Hz to 20kHz)

Total Harmonic Distortion:

Input to Speakers:0.2 at 13.8W (40Hz to 20kHz), 0.4 at 23.2W (1kHz)

Input to Monitor Out:0.05 at +10 dBu (20Hz to 20kHz), 0.009 at +20 dBu (1kHz)

Equivalent Input Noise:-115 dBu

Residual Output Noise:Input to Speakers -68 dBu (40Hz to 20kHz) Input to Monitor Out -99 dBu (20Hz to 20kHz)

Crosstalk:-80 dB (1kHz)

Load Protection:DC- Fault

Amplifier Protection:Overheat Protection, Over Current Protection

Power Consumption:35W (Idle) / 90W (1/8 Power)
