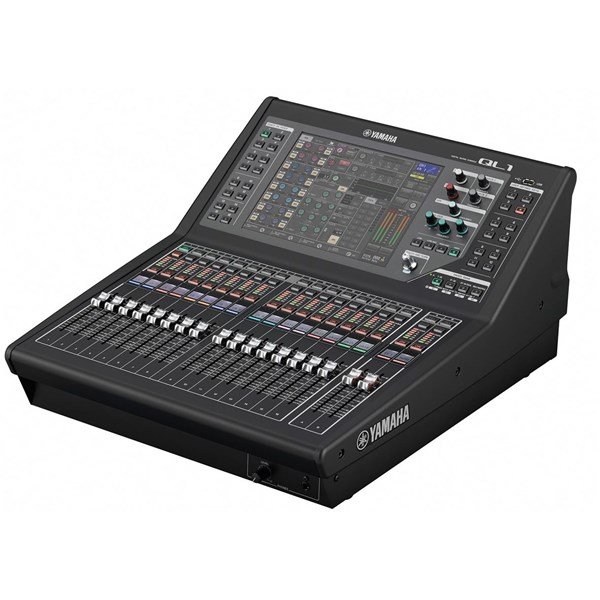

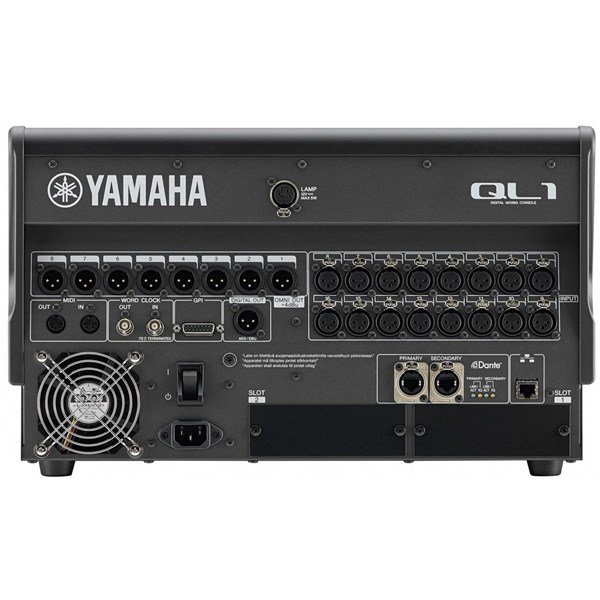

Yamaha QL1 Dijital Mikser
Yamaha QL1 Dijital Mikser
- Miks Kanalı: 32 mono, 8 stereo.
- Bus: 16 miks, 8 matrix (Matrix girişi desteklenir).
- Local I/O: 16 giriş, 8 çıkış.
- Fader konfigürasyonu: 16 + 2 (Master).
- Opsiyonel RK1 Rack Mount Kit ile Monte Edilebilir Rack
| Sampling frequency rate | Internal | 44.1kHz / 48kHz |
|---|---|---|
| External | 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm), 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) | |
| Signal delay | 2.5ms'den az, INPUT'dan OMNI OUT'a, Fs= 48kHz | |
| Fader | 100mm motorized, Resolution=1024steps, +10dB to –138dB, –∞dB all faders | |
| Total harmonic distortion | 0.05%'den az 20Hz-20kHz@+4dBu into 600Ω, INPUT 'dan OMNI OUT'a, Input Gain= Min. | |
| Frequency response | +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, INPUT'dan OMNI OUT'a | |
| Dynamic range | 112dB typ.: DA Converter / 108dB typ.: INPUT'dan OMNI OUT'a, Input Gain = Min. | |
| Hum & noise level | Equivalent input noise | -128dBu typ., Equivalent Input Noise, Input Gain=Max |
| Residual output noise | -88dBu, Residual output noise, ST master off | |
| Crosstalk | -100dB*1, adjacent INPUT/OMNI OUT kanallar, Input Gain = Min. | |
| Power requirements | 100-240V 50/60Hz | |
| Power consumption | 135W | |
| Dimensions | W | 468mm(18.4in ) |
| H | 272mm(10.7in) | |
| D | 562mm(22.1in) | |
| Net weight | 14.7kg(32.4lb) | |
| Accessories | Kullanım Kılavuzu, güç kablosu, DVS lisans dosyası | |
| Options | Rackmount kit RK1, Mini-YGDAI card *2 , Gooseneck Lamp LA1L, Nuendo Live | |
| Others | Çalıştırma ısı aralığı: 0 - 40℃, Saklama ısı aralığı: -20 - 60℃ | |
Crosstalk@1kHz : A 22kHz, 30dB/Oct filter is used to measure crosstalk.
Total Harmonic Distortion : An 80kHz, 18dB/Oct filter is used to measure total harmonic distortion.
Hum & Noise : An A-Weight filter is used to measure hum &noise.
Analog giriş karakteristikleri
| Input Connectors | GAIN | Input Impedance |
Source Impedance |
Input level | Connector | ||
|---|---|---|---|---|---|---|---|
| Sensitivity*¹ | Nominal | Max. before clip | |||||
| INPUT 1-32 *6 |
+66dB | 7.5 kΩ | 50-600 Ω Mics & 600 ΩLines |
–82dBu (61.6μV) |
–62dBu (0.616mV) |
–42dBu (6.16mV) |
XLR-3-31 type (Balanced) *2 |
| –6dB | –10dBu (245mV) |
+10dBu (2.45V) |
+30dBu (24.5V) |
||||
*1. The sensitivity is the input level required for output at +4dBu (1.23V) or at the defined level when all the faders and level
controllers are set to the maximum value.
*2. XLR-3-31 connectors are balanced jacks (1=GND, 2=HOT, 3=COLD).
*3. 0dBu=0.775 Vms for all specifications.
*4. All the AD converters use 24-bit linear/128-times oversampling.
*5. The INPUT connectors have +48V DC (phantom power) jacks, each of which can be turned on/off individually from the console software.
*6. QL1: INPUT1-16
Analog çıkış karakteristikleri
| Output Connectors |
Output Impedance |
Load Impedance |
Maximum Output Level *5 |
Output Level | Connector | |
|---|---|---|---|---|---|---|
| Defined Level | Maximum Non-Clip Level |
|||||
| OMNI OUT 1-16 *7 |
75 Ω | 600 Ω Lines |
+24dB (default) |
+4dBu (1.23V) |
vt+24dBu (12.3V) |
XLR-3-32 type (Balanced) *1 |
| +18dB | –2dBu (616mV) |
+18dBu (6.16V) |
||||
| PHONES | 15 Ω | 8 Ω Phones |
- | 75mW *6 | 150mW | Stereo Phone Jack(TRS) (Unbalanced) *2 |
| 40 Ω Phones |
- | 65mW *6 | 150mW | |||
*1. XLR-3-32 connectors are balanced jacks (1=GND, 2=HOT, 3=COLD).
*2. The PHONES connectors for stereo headphones are balanced jacks (Tip=LEFT, Ring=RIGHT, Sleeve= GND).
*3. 0 dBu=0.775 Vms for all specifications.
*4. All the DA converters use 24-bit linear/128-times oversampling.
*5. The console has an internal switch for toggling the maximum output level.
*6. This is a value measured with the PHONES LEVEL knob set to 10 dB below the maximum position.
*7. QL1: OMNI OUT 1-8
Dijital giriş/çıkış özellikleri
| Connectors | Format | Data length | Level | Audio | Connector |
|---|---|---|---|---|---|
| Primary/Secondary | Dante | 24bit or 32bit | 1000Base-T | 64ch Input/64ch Output@48kHz *1 |
EtherCON Cat5e |
*1. QL1: 32ch Input/32ch Output@48kHz
Digital output specifications
| Connectors | Format | Data length | Level | Connector | |
|---|---|---|---|---|---|
| DIGITAL OUT | AES/EBU | AES/EBU Professional Use | 24bit | RS422 | XLR-3-32 type (Balanced) *1 |
*1. XLR-3-32 connectors are balanced jacks (1=GND, 2=HOT, 3=COLD).
I/O SLOT (1-2) özellikleri
Each I/O Slot accepts a Mini-YGDAI card.
Only Slot 1 has a serial interfac
Control I/O karakteristikleri
| Connectors | Format | Level | Connector | |
|---|---|---|---|---|
| MIDI | IN | MIDI | - | DIN Connector 5P |
| OUT | MIDI | - | DIN Connector 5P | |
| WORDCLOCK | IN | - | TTL/75 Ω terminated | BNC Connector |
| OUT | - | TTL/75 Ω | BNC Connector | |
| GPI (5IN/5OUT) | - | - | D Sub Connector 15P(Female) *1 | |
| NETWORK | IEEE802.3 | 10BASE-T/100Base-TX | RJ-45 | |
| LAMP (QL5: x 2, QL1: x 1) | - | 0V-12V | XLR-4-31 type *2 | |
| USB HOST | USB 2.0 | - | USB A Connector (Female) | |
*1. Input pin: TTL level, w/ internal pull-up (47kΩ) Output pin: Open drain output (Vmax=12V, maximum sink current/pin=-75mA) Power supply pin: Output voltage Vp=5V, Max. output current=300mA
*2. 4 pin=+12V, 3 pin=GND, Lamp nominal power: 5W, Brightness (voltage) can be adjusted from the software.
